Admin User Interface: Admin Account, SSID Configuration, LAN / WAN Setup

Login

After turning on the Sollis Hub connect to it via Wi-Fi by following these steps:

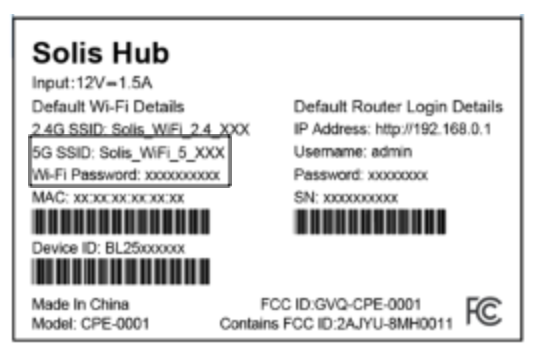

1. Locate the default SSID (network name) and the default Wi-Fi key (password) on the sticker located on the bottom of the router.
2. On your mobile device, access the Wi-Fi settings menu. Select the SSID (network name) and enter the default Wi-Fi key (password) from Step 1.
   • Either 2.4G SSID or 5G SSID is fine to connect to.



After connecting to Wi-Fi, access the Web User Interface by following this step:

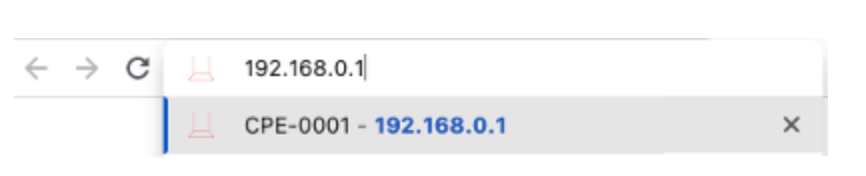

On your mobile device, navigate to an internet search browser, and input the IP address of 192.168.0.1, then click enter.

After navigating to the Web User Interface, log in by following this step:

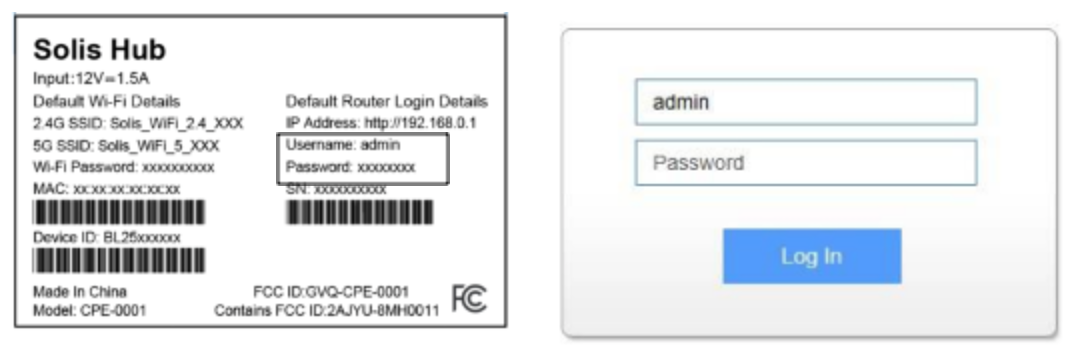

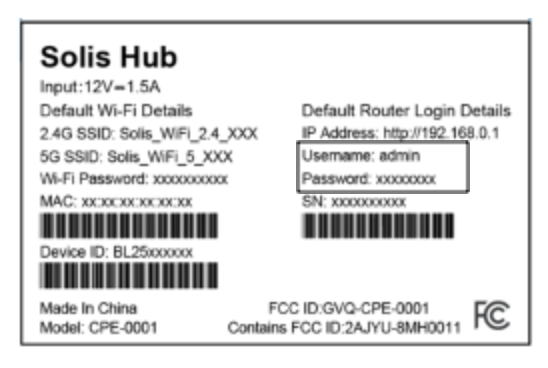

On your mobile device, login to the Web User Interface’s Home Page using the default username of admin and the default password which will be a series of letters and numbers. Both can be found on the sticker located on the bottom of the router.

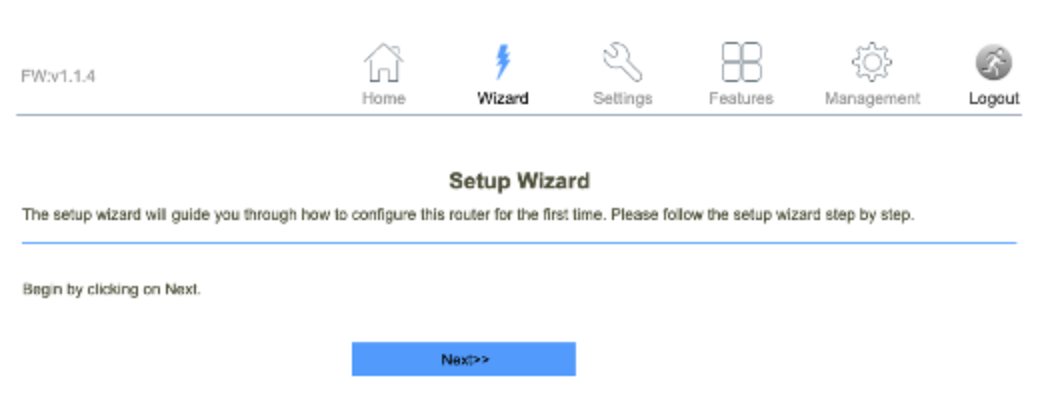

Setup Wizard

 After logging into the Solis Hub, the Setup Wizard will appear. The Setup Wizard will guide users along the Solis Hub configuration steps, it is imperative they follow the guide step by step.

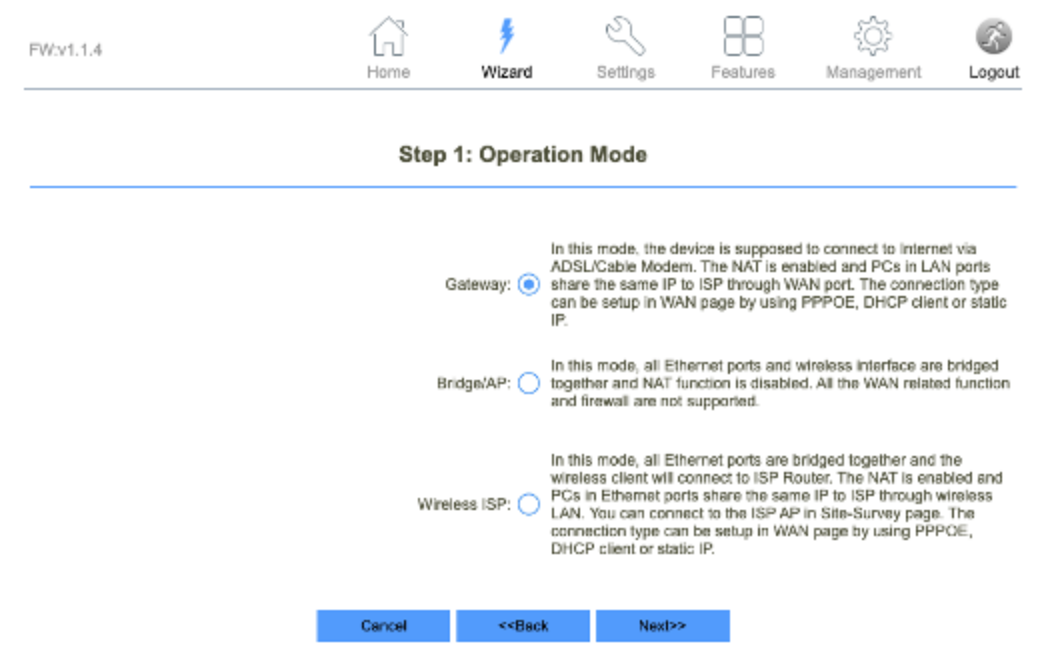

Step 1: Operation Mode

 The Operation Mode page is used to toggle the SOLIS HUB between different operational modes; Gateway, Bridge/AP mode, and Wireless ISP.

To ensure your device works on your pre-selected data plan, you must start by selecting Gateway, you can always go back and change this selection at a later time if you wish.

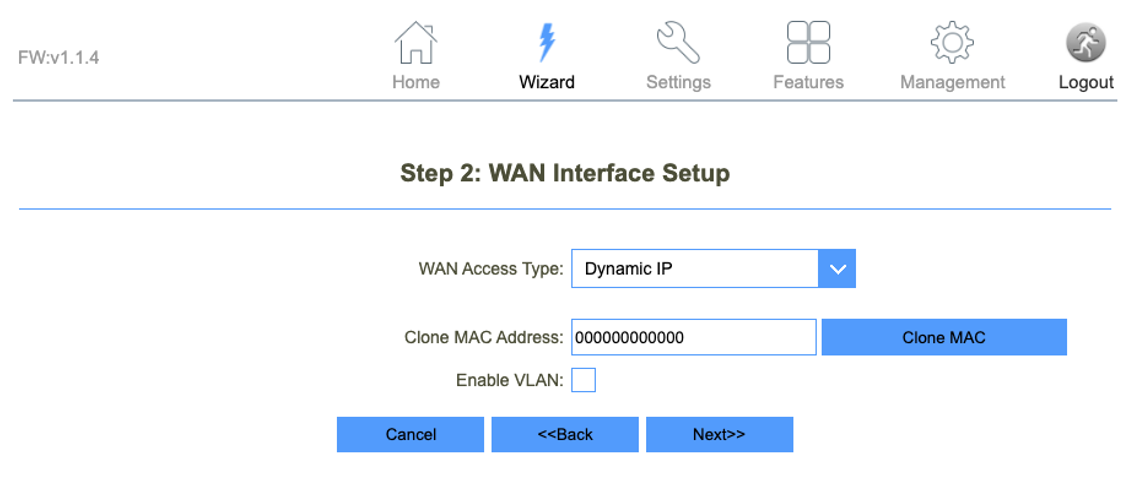

Step 2: WAN Interface Setup

The WAN Interface Setup page is used to set the WAN Access Type.

You do not need to set up the WAN Interface at this moment, you can always go back and set it up at a later time.

Skip this step and click Next.

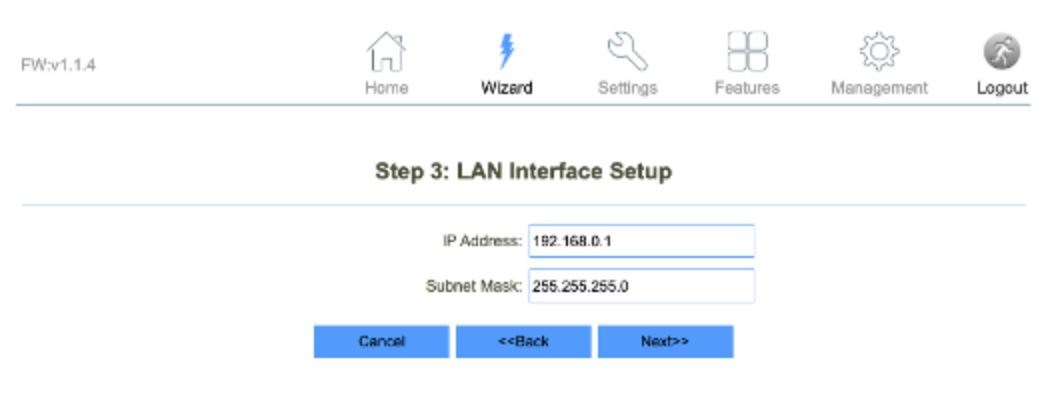

Step 3: LAN Interface Setup

The LAN Interface Setup page is used to configure the IP Address and Subnet Mask if you are connecting an external router to the Solis Hub via LAN.

You do not need to set up the LAN Interface at this moment, you can always go back and set it up at a later time.

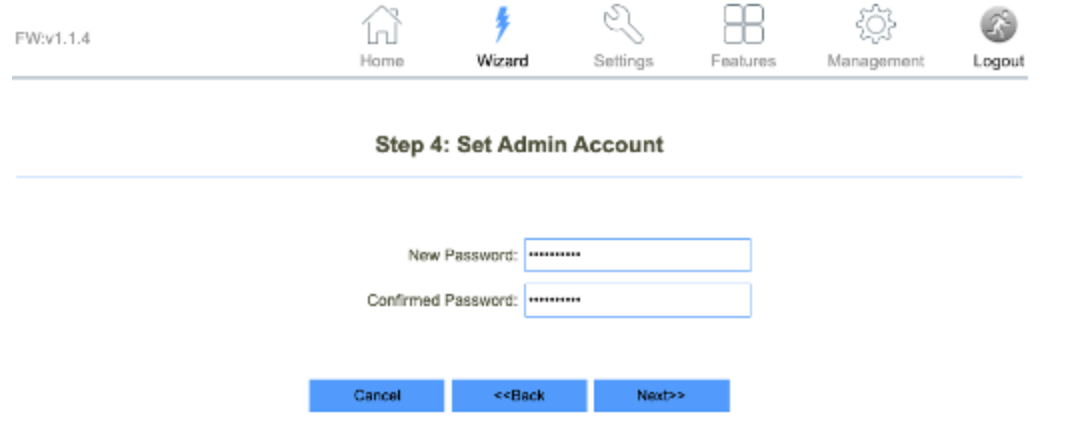

Step 4: Set Admin Account

The Set Admin Account page is used to set the new user interface (router log-in) password.

The pre-set user and password can be found on the sticker located on the bottom of the router.

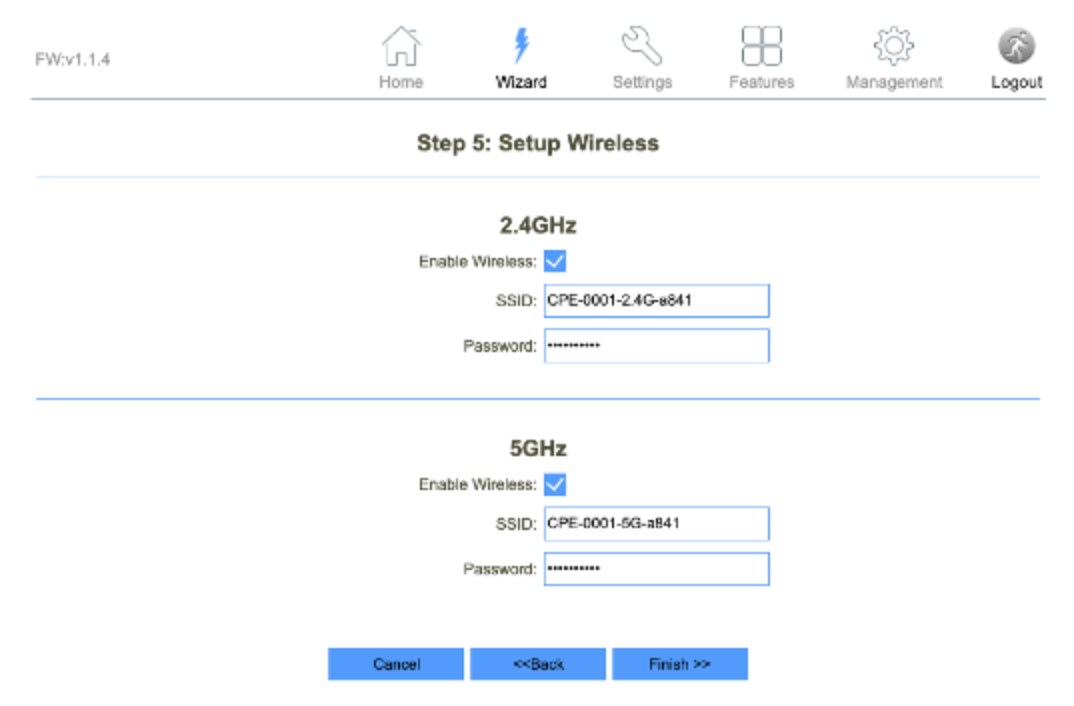

Step 5: Setup Wireless





The Setup Wireless page is used to set the SSID and password for both the 2.4GHz and 5GHz Wi-Fi networks.

It is also used to enable or disable either of the Wi-Fi networks.

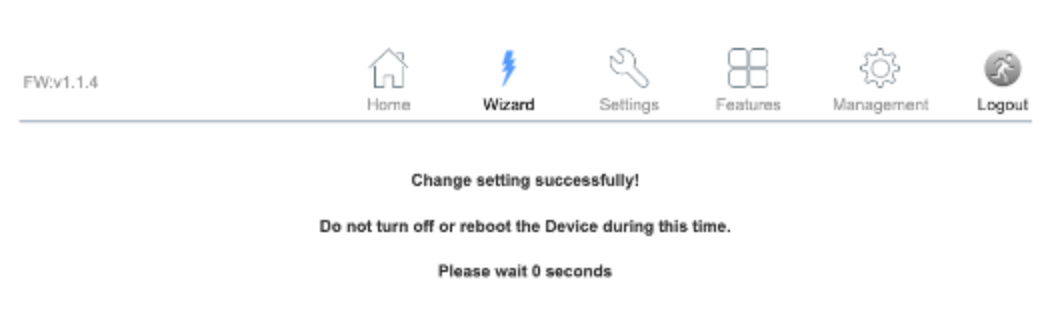

 Step 6: Automatic Reboot



The Solis Hub will reboot once you have clicked the finished button on Step 6 to apply the changes you have made.

Remember to connect back to the router’s broadcasted Wi-Fi network to connect to it again. You may have changed what that looks like in the previous step.
