Home Page/Main Section
After completing the Setup Wizard, the Home Page of the Solis Hub will appear.
The Home Page is where users can check the connection status between the Solis Hub and the Internet, and adjust settings such as Wi-Fi options, parental controls, and more.

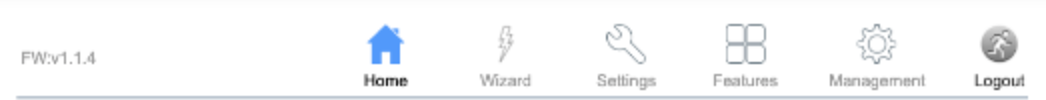

Banner
At the top of the Home Page, a banner consisting of icons is presented. Each of these icons represents a sub-section, we will explore each sub-section in this guide. We have already explored the Wizard sub-section earlier in this chapter. To the left of the icons, the current firmware version (FW) of the Solis Hub is displayed.

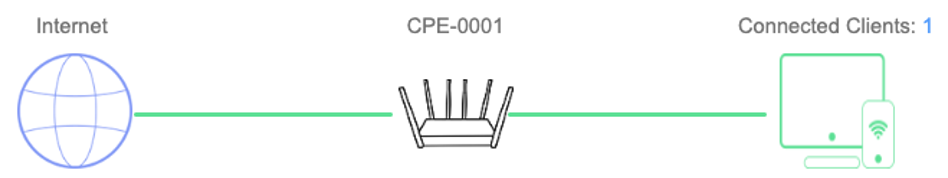

Network Map
The Network Map is located in the middle of the Home Page. The line between the Internet Globe, the Solis Hub, and the Internet devices on the map indicates the connection status between them.
A solid green line indicates a successful connection, whereas a red line with an x in the idle indicates that there is no connection.
If there is a red line with an x in the idle between the Internet Globe and the Solis Hub, there is no 4G LTE connection present. If there is a red line with an x in the idle between the Internet Globe and the Solis Hub it is an indication that there is no Wi-Fi connection between the Solis Hub and Internet devices either over Wi-Fi or via LAN.
The Internet Globe image, the Solis Hub image, the Desktop Image, and Control Panel Drop Down are all clickable and reveal menus.

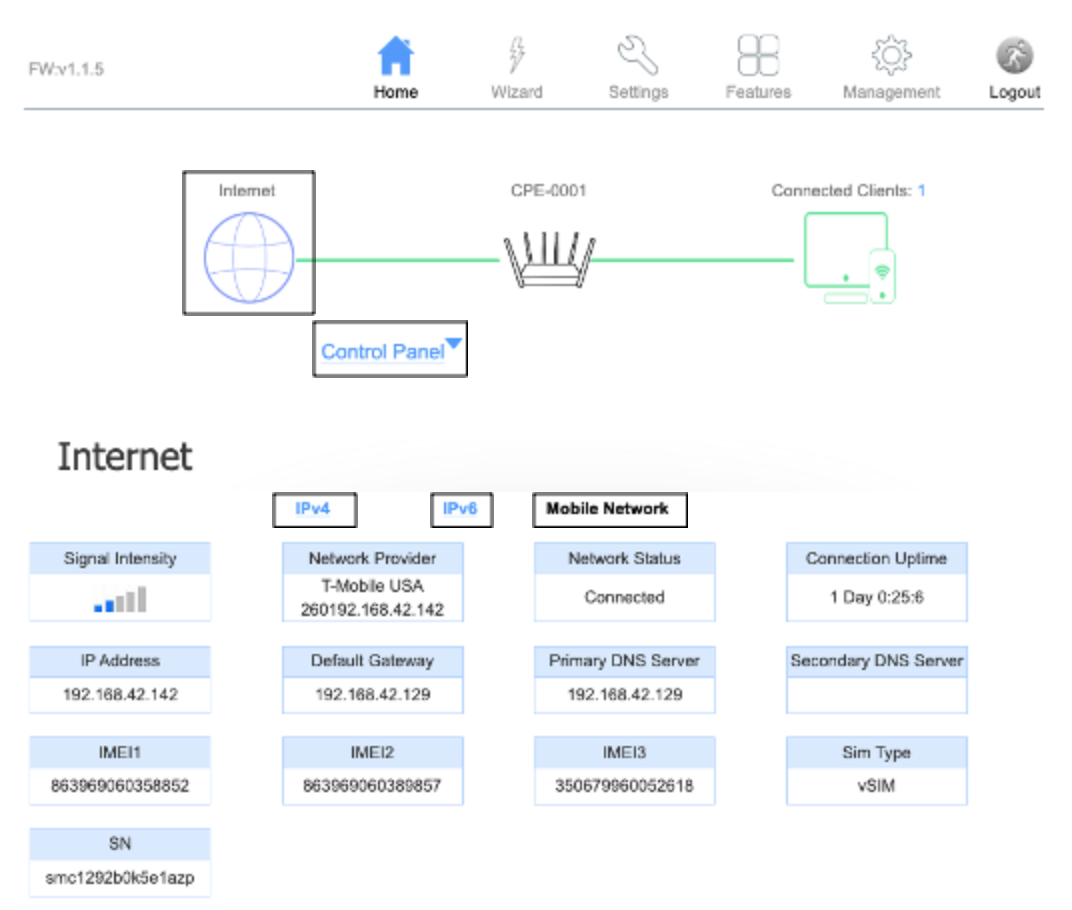

Internet
The Internet section is divided into three distinct sections: IPv4, IPv6, and Mobile Network.

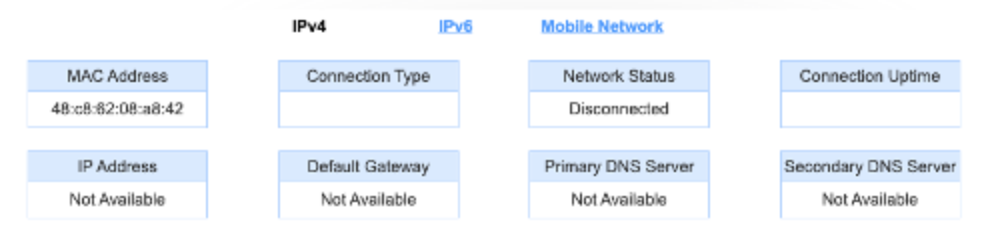

IPv4 or Internet Protocol Version 4
| Item | Description |
| MAC Address | The MAC Address or the Media Access Control address is a unique serial number in the network circuitry of every Ethernet and Wi-Fi device. |
| Connection Type | Dynamic Host Configuration Protocol Version |
| Network Status | The connection status between the SOLIS HUB and the internet when using the WAN port. |
| Connection Uptime | The period of time the SOLIS HUB has been connected to the internet. |
| IP Address | An IP address, or Internet Protocol address, is a series of numbers that identifies any device on a network. |
| Default Gateway | The IP address of another router your SOLIS HUB sends traffic too. |
| Primary DNS Server | The first touchpoint for a browser asking where to find a site. |
| Secondary DNS Server | The second touchpoint for a browser asking where to find a site in the case that the Primary DNS Server is unavailable. |

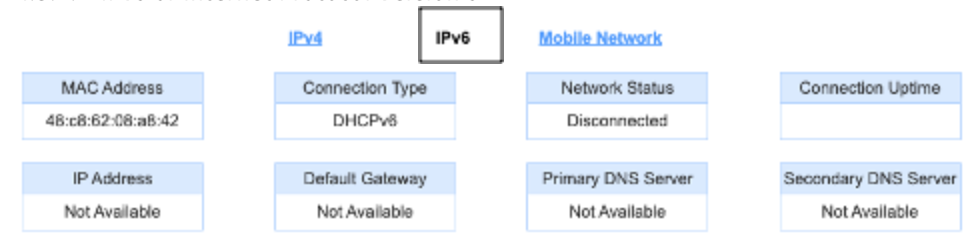

IPv6 or Internet Protocol Version 6
| Item | Description |
| MAC Address | The MAC Address or the Media Access Control address is a unique serial number in the network circuitry of every Ethernet and Wi-Fi device. |
| Connection Type | Dynamic Host Configuration Protocol Version |
| Network Status | The connection status between the SOLIS HUB and the internet when using the WAN port. |
| Connection Uptime | The period of time the SOLIS HUB has been consistently connected to the internet. |
| IP Address | An IP address, or Internet Protocol address, is a series of numbers that identifies any device on a network. |
| Default Gateway | The IP address of another router your SOLIS HUB sends traffic too. |
| Primary DNS Server | The first touchpoint for a browser asking where to find a site. |
| Secondary DNS Server | The second touchpoint for a browser asking where to find a site in the case that the Primary DNS Server is unavailable. |

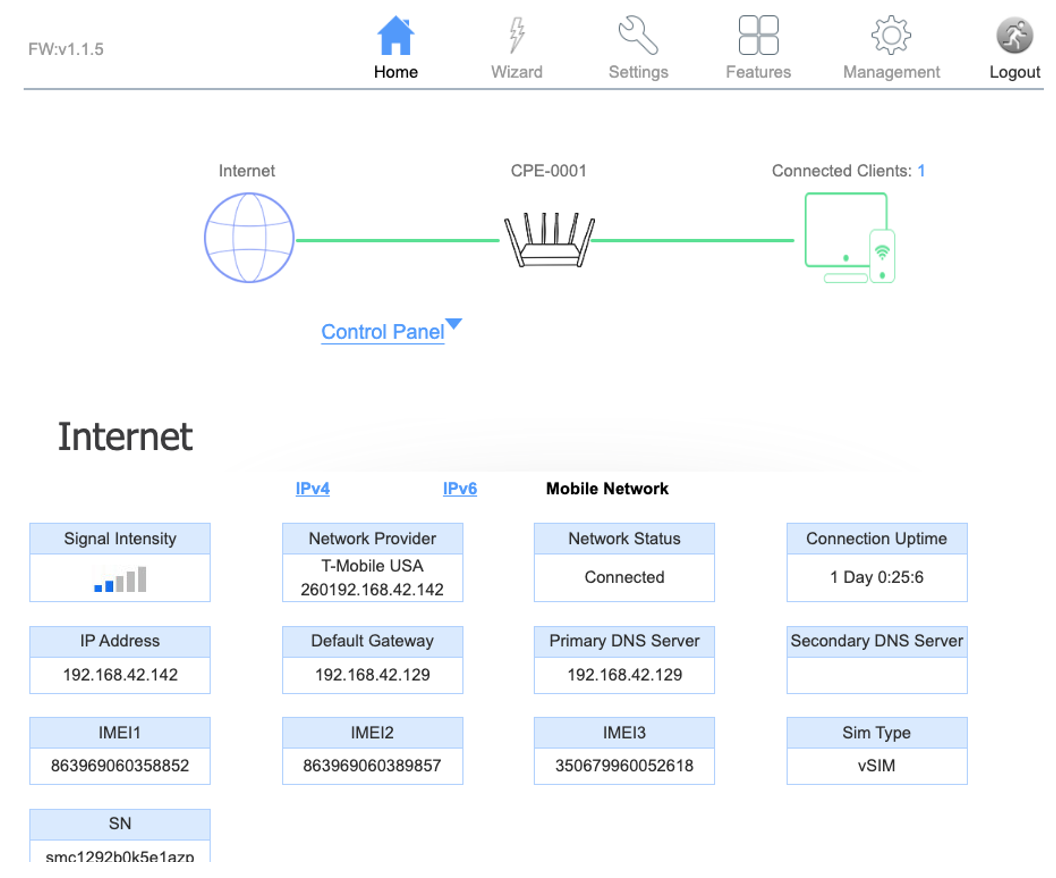

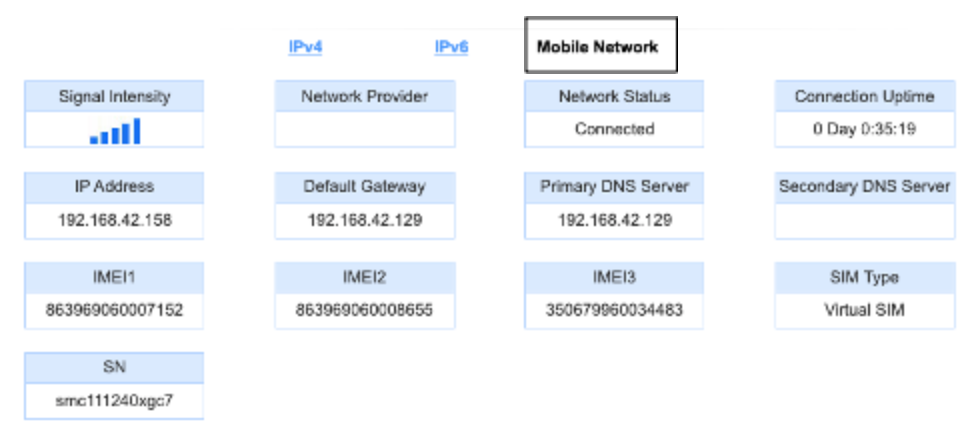

Mobile Network
| Item | Description |
| Signal Intensity | The cellular signal strength of the SOLIS HUB. |
| Network Provider | The local cellular network your SOLIS HUB connects to. |
| Network Status | The connection status between the SOLIS HUB and the internet when using vSIM. |
| Connection Uptime | The period of time the SOLIS HUB has been connected to the internet. |
| IP Address | An IP address, or Internet Protocol address, is a series of numbers that identifies any device on a network. |
| Default Gateway | The IP address of another router your SOLIS HUB sends traffic too. |
| Primary DNS Server | The first touchpoint for a browser asking where to find a site. |
| Secondary DNS Server | The second touchpoint for a browser asking where to find a site in the case that the Primary DNS Server is unavailable. |
| IMEI (1,2,3) | IMEI or International Mobile Equipment Identity is a unique number for identifying a device on a mobile network. |
| SIM Type | Whether the SOLIS HUB is connecting to the internet via Virtual Sim or Physical Sim. |
| SN | The SOLIS HUB’s Serial Number. |

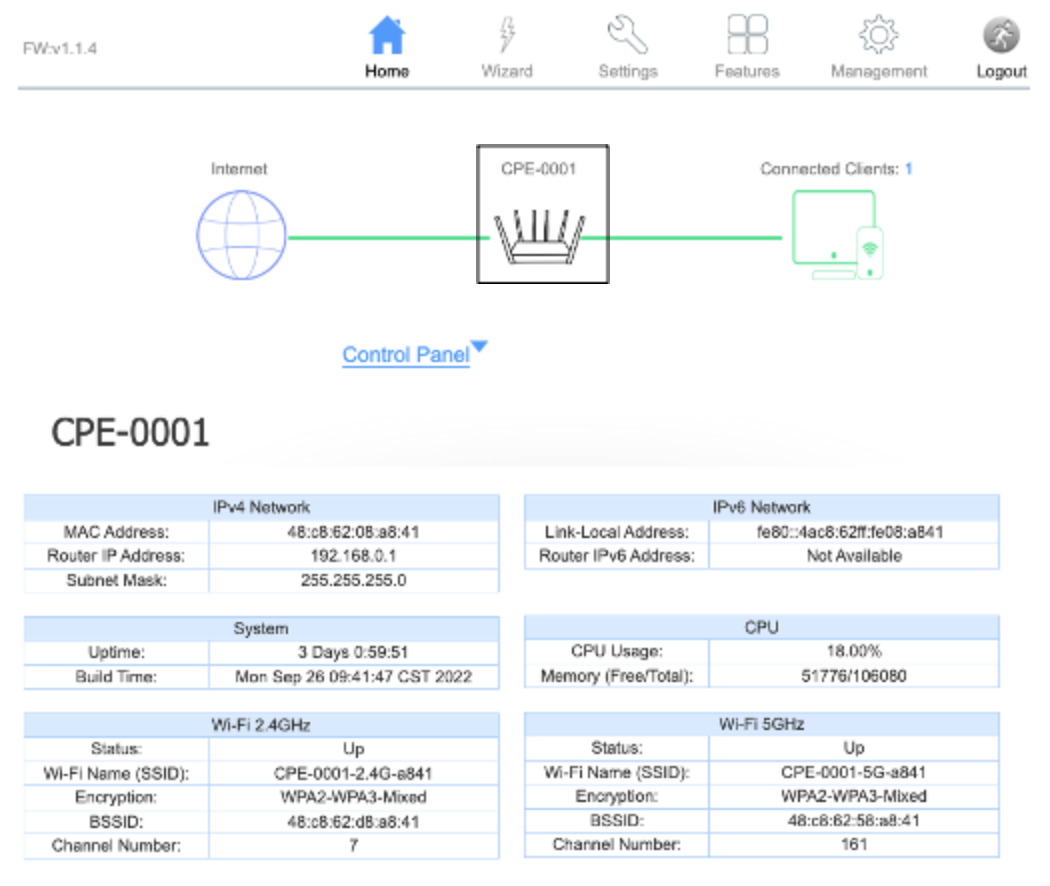

CPE-0001
Clicking the CPE-0001 image provides a combined overview of the same internet sections that were found under the Global Internet Image.
| Item | Description |
| MAC Address | The cellular signal strength of the SOLIS HUB. |
| Router IP Address | The SOLIS HUB’s IP address. |
| Subnet Mask | A number that resembles an IP address. It reveals how many bits in the IP address are used for the network by masking the network portion of the IP address |
| Link-Local Address | A network address that is valid only for communications within the subnetwork that the host is connected to. |
| Router IPv6 Address | A numeric label that is used to identify and locate a network interface of a computer or a network node participating in a computer network using IPv6. |
| CPU Usage | The percentage of total CPU capacity being used at any given time. |
| Memory (Free/Total) | The amount of memory used. |
| Status | An indication of whether or not the 2.4GHz and 5GHz Wi-Fi networks are emitting. |
| WiFi Name (SSID) | The network name. |
| Encryption | The encryption type currently being used to secure your wireless network with an authentication protocol. |
| BSSID | Basic Service Set Identifier. |
| Channel Number | The Wi-Fi channel your SOLIS HUB is emitting Wi-Fi through. |

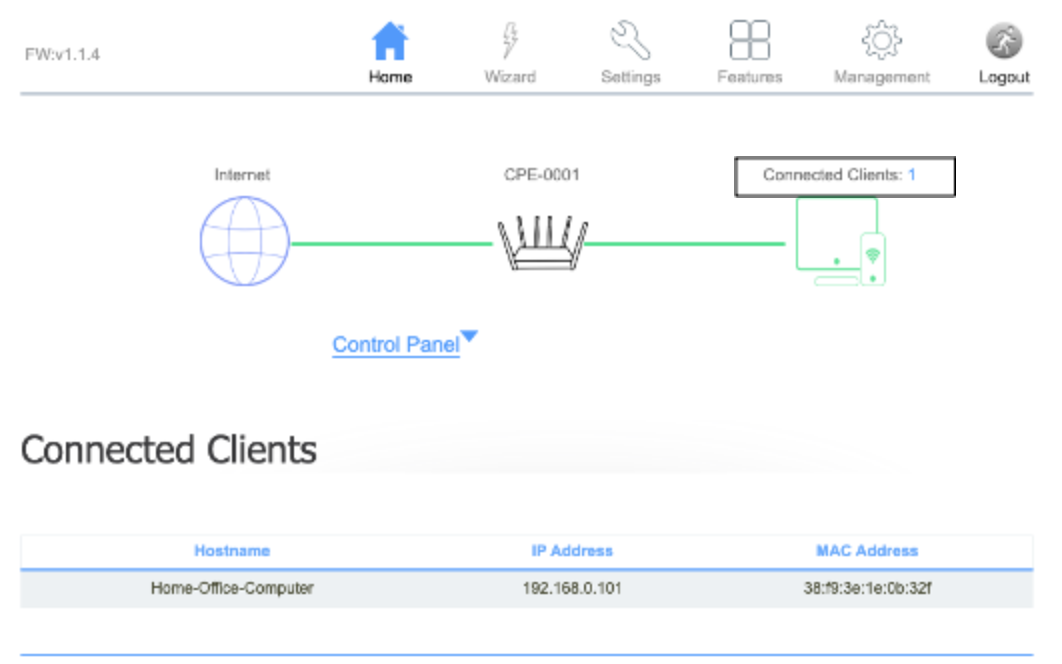

Connected Clients
There is a clickable number and logo above the Connected Client’s image which represents the number of devices connected at any given point in time.
| Item | Description |
| Hostname | Name(s) of the connected personal devices to the SOLIS HUB’s emitted Wi-Fi network. |
| IP Address | An IP address, or Internet Protocol address, is a series of numbers that identifies any device on a network. |
| MAC Address | The MAC Address or the Media Access Control address is a unique serial number in the network circuitry of every Ethernet and Wi-Fi device. |

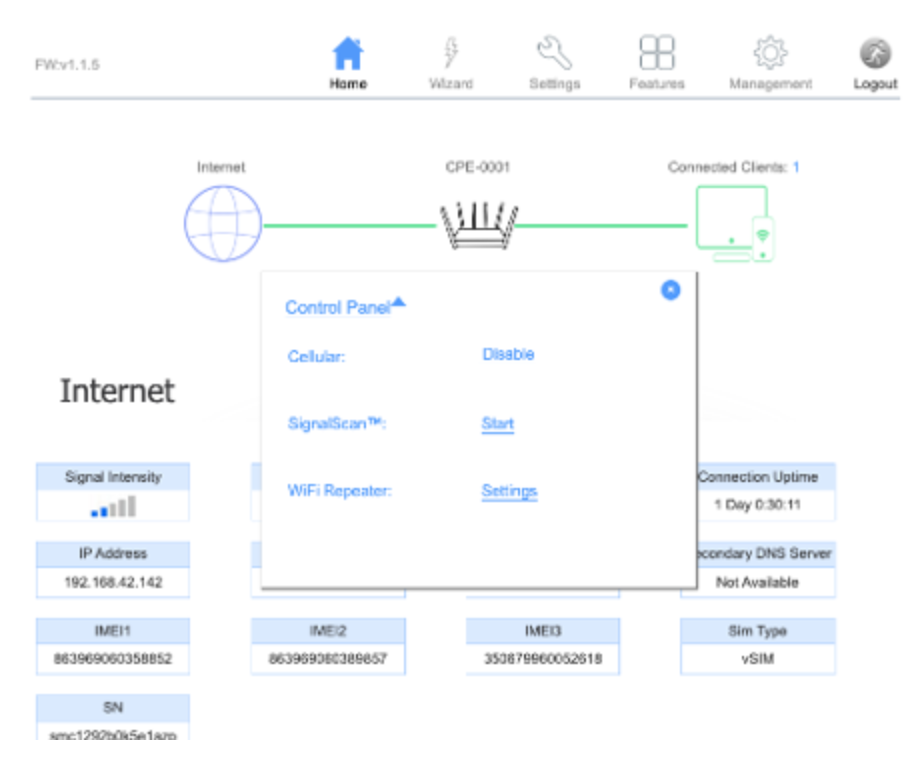

Control Panel
There is a clickable drop-down button called “Control Panel” which reveals three additional buttons that can be toggled.
| Item | Description |
| Cellular | View the status of the cellular data connection. |
| Signal Scan | Click Start to use SignalScan™ to identify a better mobile network in your current location. During the SignalScan™, your device will be offline for a few minutes. |
| WiFi Repeater | Click Settings to automatically navigate to the Site Survey Page under WiFi settings to scan available WiFi networks in the Solis Hub’s immediate vicinity. |
