Admin User Interface: Configure QoS, Firewalls, Port Forwarding, URL Filtering, and Dynamic DNS

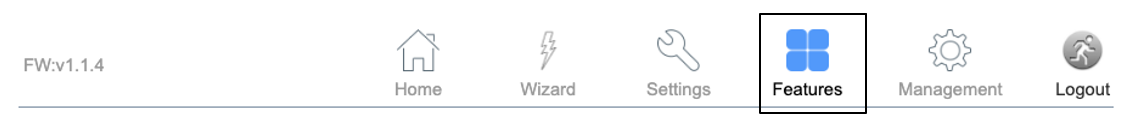

The Features section enables the user to configure QoS, Firewalls, Port Forwarding, URL filtering, Routes, and Dynamic DNS.

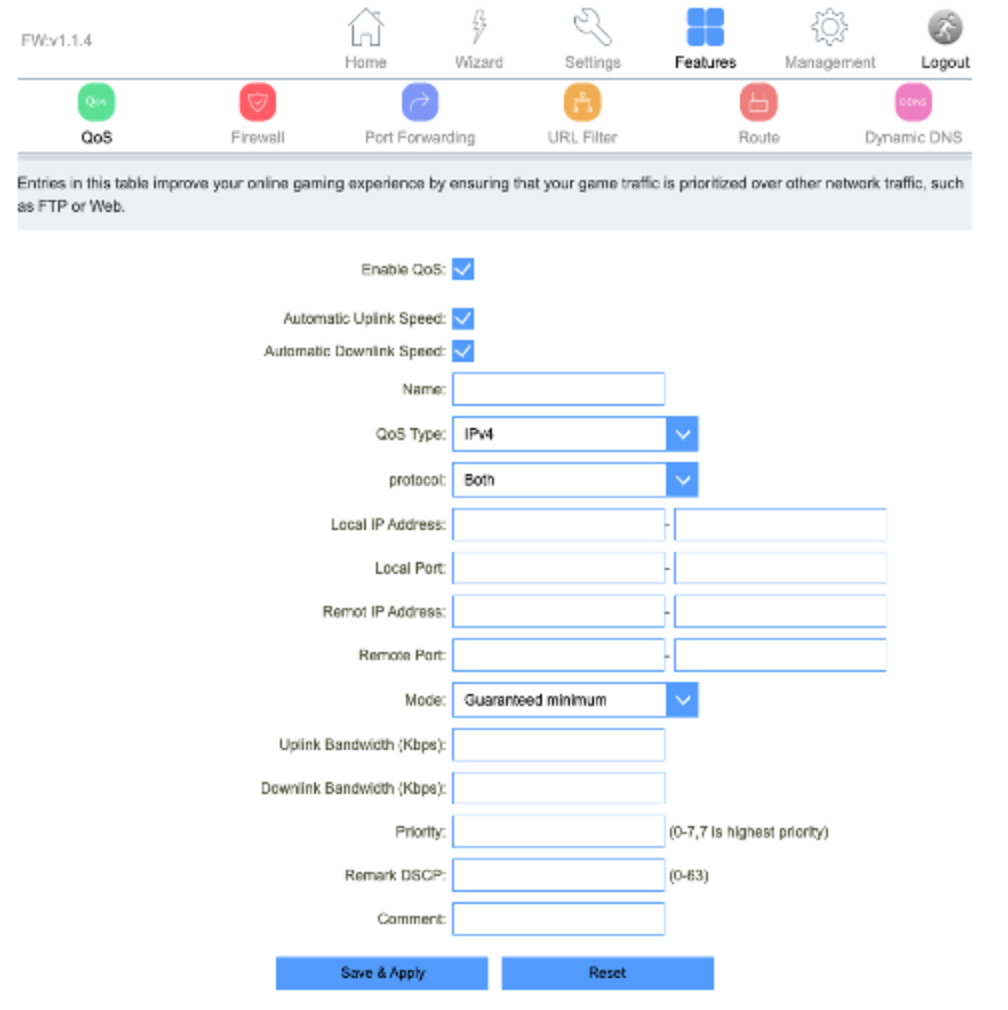

QoS

The Quality of Service (QoS) page enables user’s to limit the upload and download speeds that a specific mobile device is receiving.

Quality of Service is an excellent and underutilized tool that allows you to train your Solis Hub to divide up your available bandwidth between applications. With good QoS rules, you can ensure that your streaming video doesn’t stutter because a big file is downloading at the same time, or that your work laptop isn’t sluggish when you’re trying to meet that last-minute deadline while your kids are playing games online.

Item	Description
Automatic Uplink Speed	Automatic uplink speed.
Manual Uplink Speed (Kbps)	Set the download speed of your internet access.
Automatic Downlink Speed	Automatic downlink speed.
Manual Downlink Speed (Kbps)	Set the upload speed of your internet access.
Name	QoS rule name.

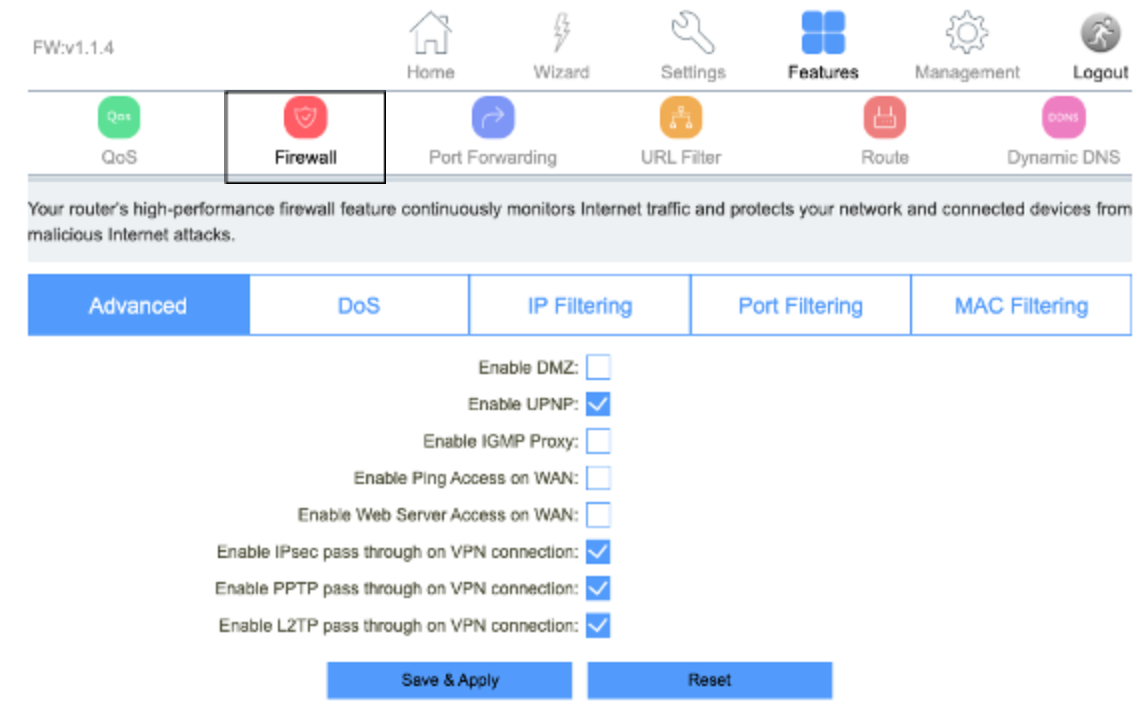

Firewall

The Firewall page enables user’s to set up a plethora of firewall-related features and functions.

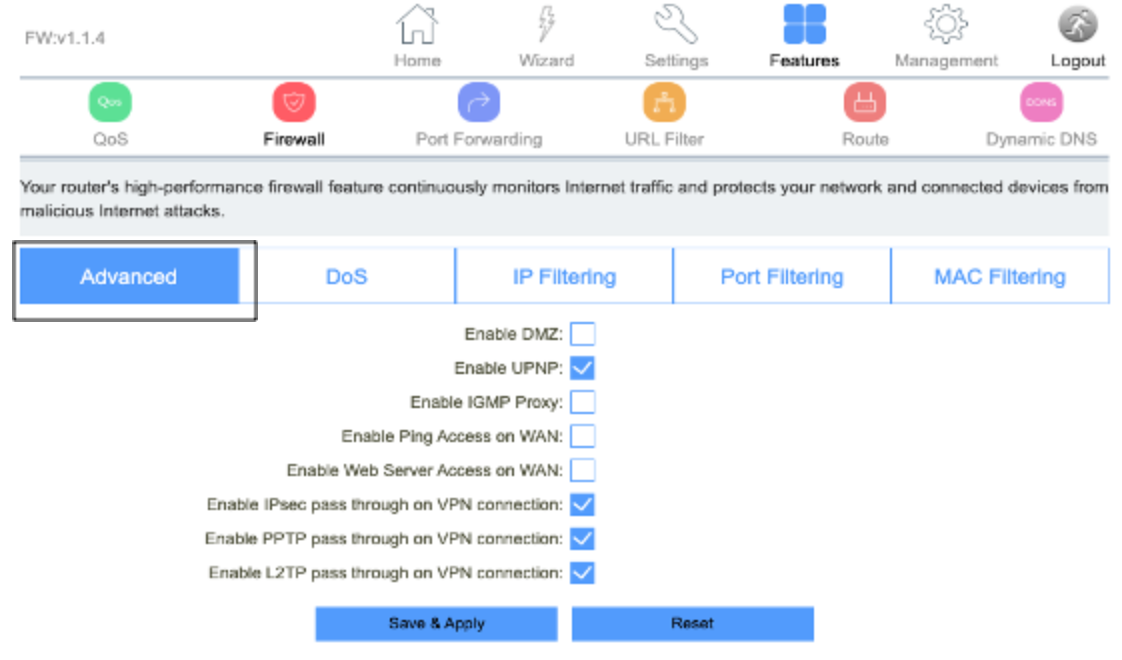

Advanced

The Advanced page contains a series of checkboxes allowing user to toggle on or off specific fire-wall related functions, access, and VPN pass throughs.

Note :

The following features in this Menu are not supported when the device uses vSIM:

• Enable DMZ
• Enable IPSec Pass through on VPN connection
• Enable PPTP Pass through on VPN connection



Item	Description
Enable DMZ	DMZ function.
Enable UPnP	UPnP function.
Enable IGMP Proxy	IGMP Proxy function.
Enable Telnet Access on WAN	Telnet by wan access.
Enable Ping Access on WAN	Ping Access on WAN function.
Enable Web Server Access on WAN	Enable Web Server Access on WAN function.
Enable IPSec pass through on VPN connection	IPSEC to pass through IPSEC communication data.
Enable PPTP pass through on VPN connection	PPTP to pass through PPTP communication data.
Enable L2TP pass-through on VPN connection	Enable or disable L2TP to pass through L2TP communication data.

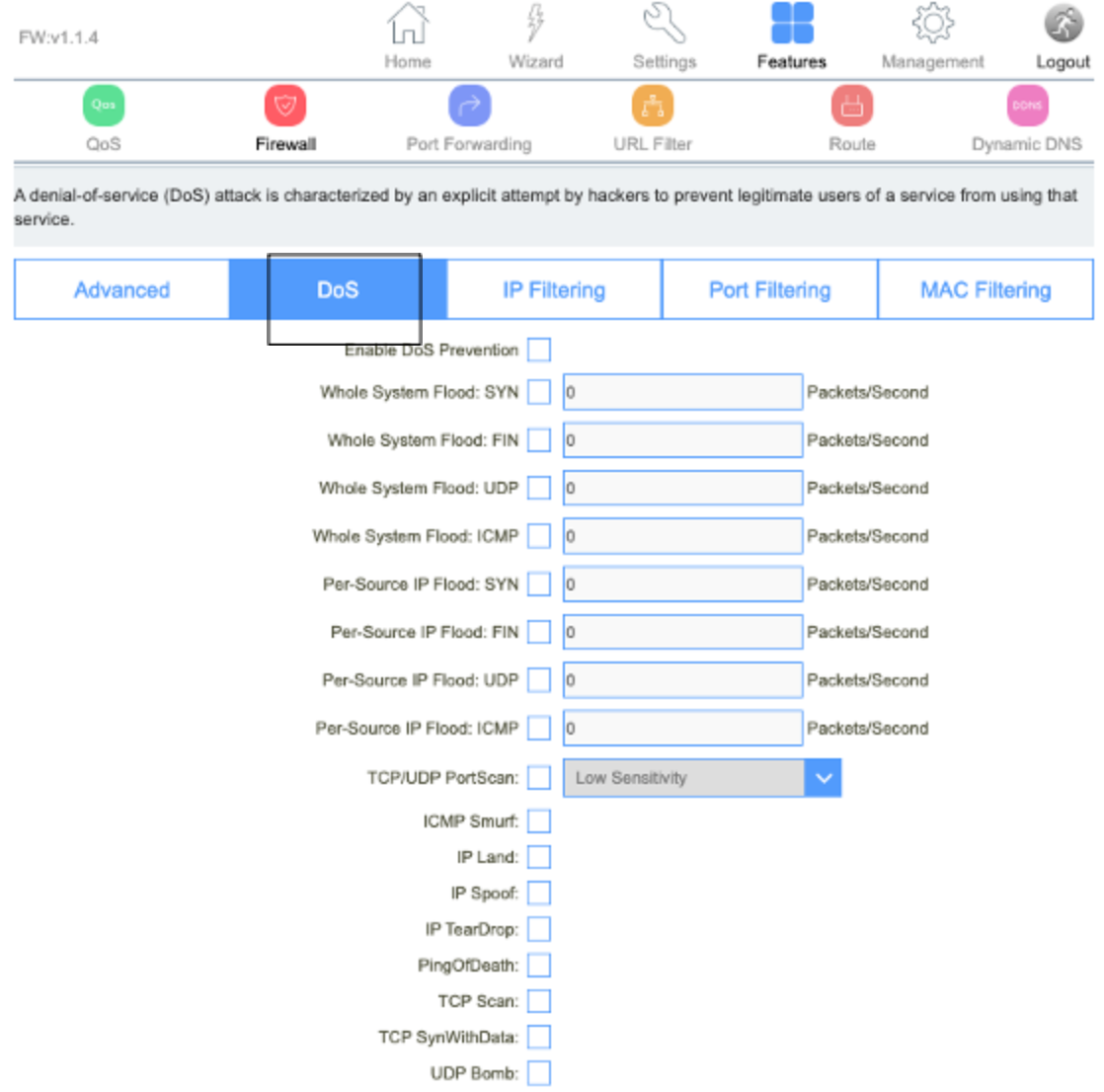

DoS

The Denial-of-Service (DoS) page enables users to protect their Solis Hub from DoS attack’s by setting certain parameters relating to network security.

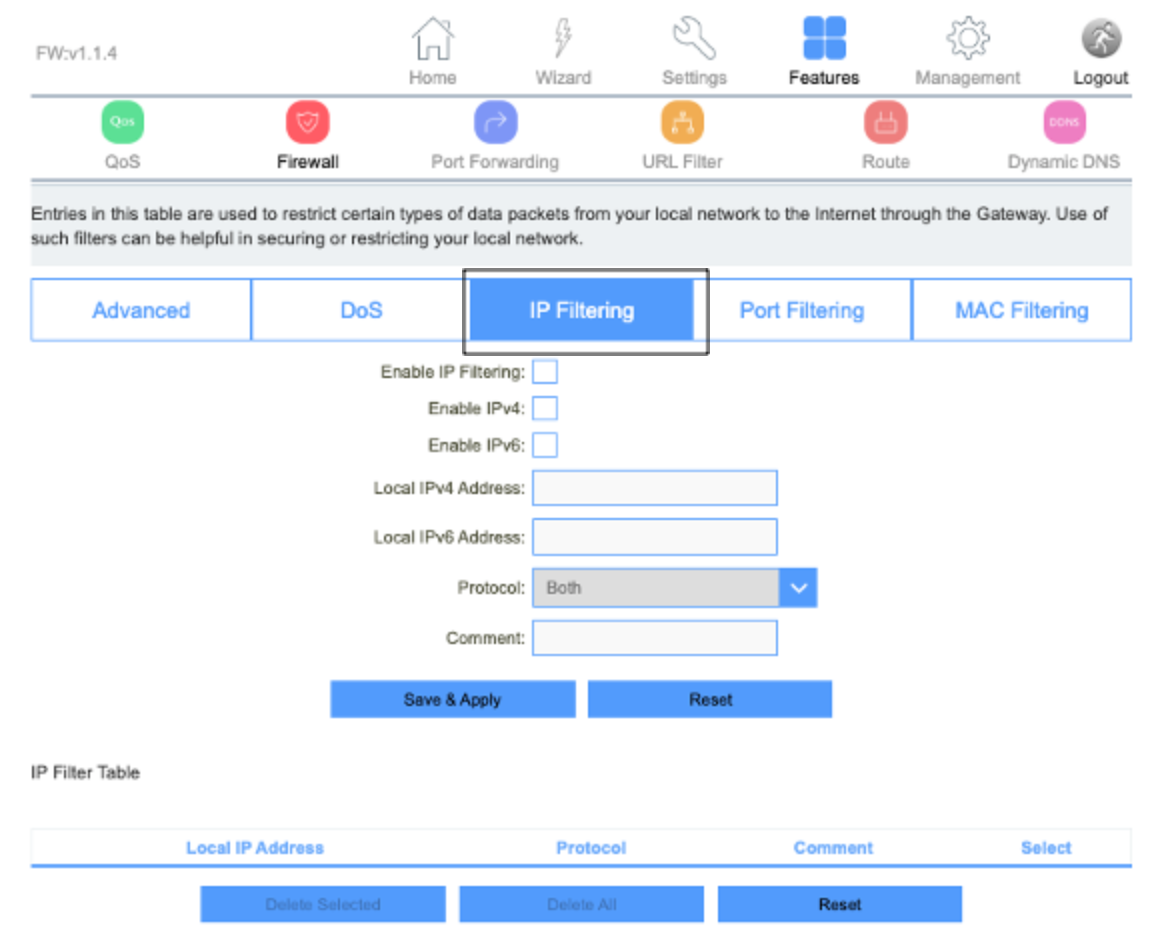

Filtering

The IP Filtering page enables users to control what IP traffic will be allowed into and out of the Solis Hub's network.

Item	Description
Enable IP Filtering	IP Filtering function.
Enable IPv4	IPv4 Filtering feature.
Enable IPv6	IPv6 Filtering feature.
Local IPv4 Address	LAN side source IPv4 address.
Local IPv6 Address	LAN side source IPv6 address.
Protocol	“TCP”, “UDP” or” Both”.

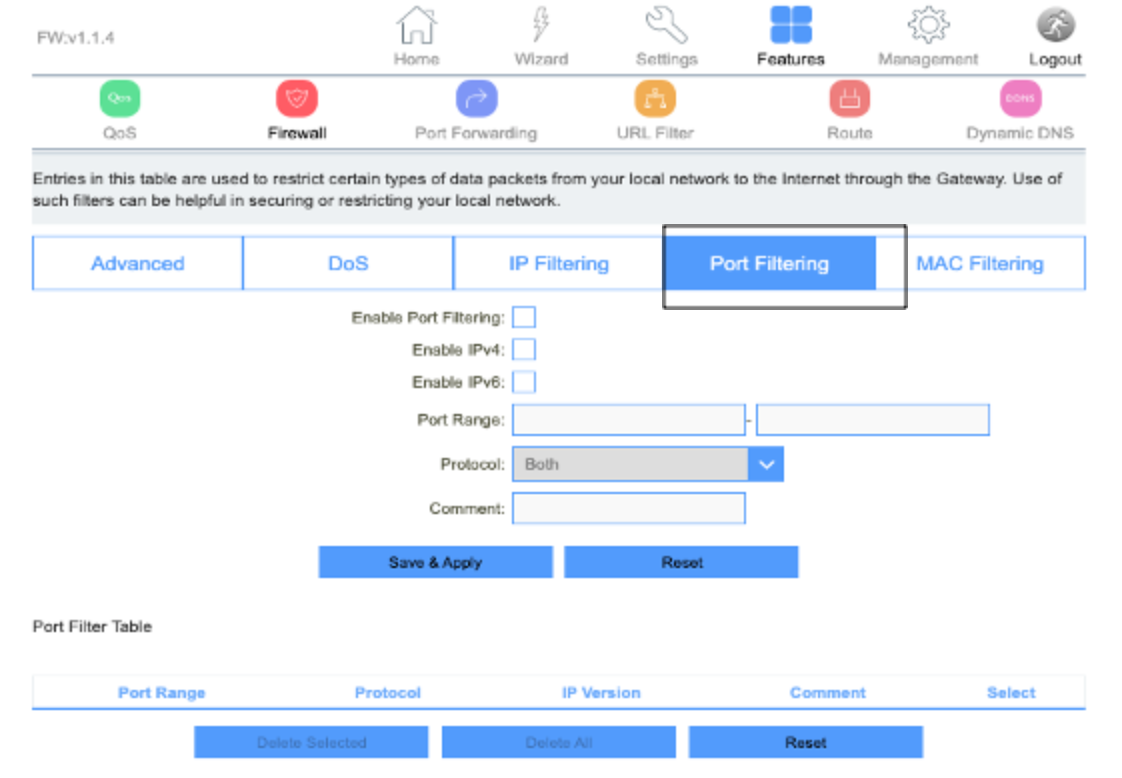

Port Filtering

The Port Filtering page enables users to allow or block certain network packers from following into and out of the Solis Hub's network based on their port number.

Item	Description
Enable Port Filtering	Enable or disable IP Filtering function.
Enable IPv4	Enable or disable IPv4 Filtering feature.
Enable IPv6	Enable or disable IPv6 Filtering feature.
Port Range	Set the port range for port filtering.
Protocol	Select “TCP”, “UDP” or” Both”.
Comment	Comment for the rule.

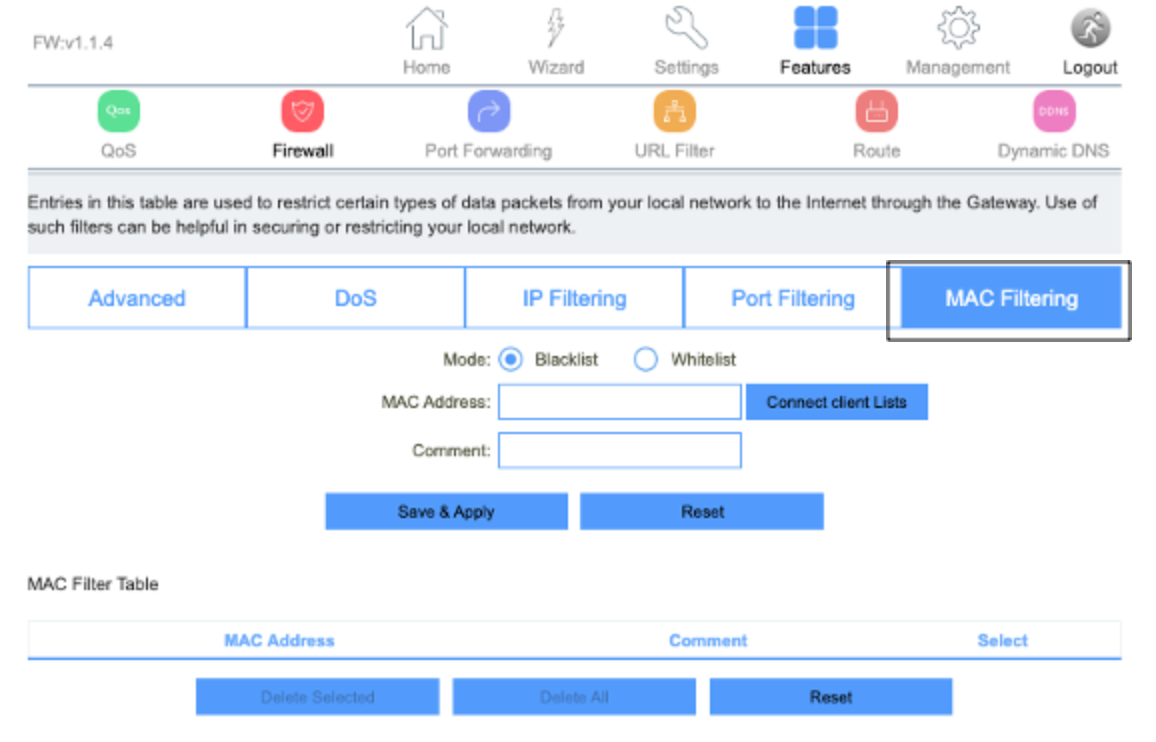

MAC Filtering

 The Mac Filtering page enables users to allow or block certain mobile devices from connecting to the Solis Hub's Wi-Fi network based on their MAC address.

Item	Description
Blacklist	Block certain website URs from being accessed.
Whitelist	Allow certain website URLs from being accessed.
MAC Address	The MAC Address or the Media Access Control address is a unique serial number in the network circuitry of every Ethernet and Wi-Fi device.

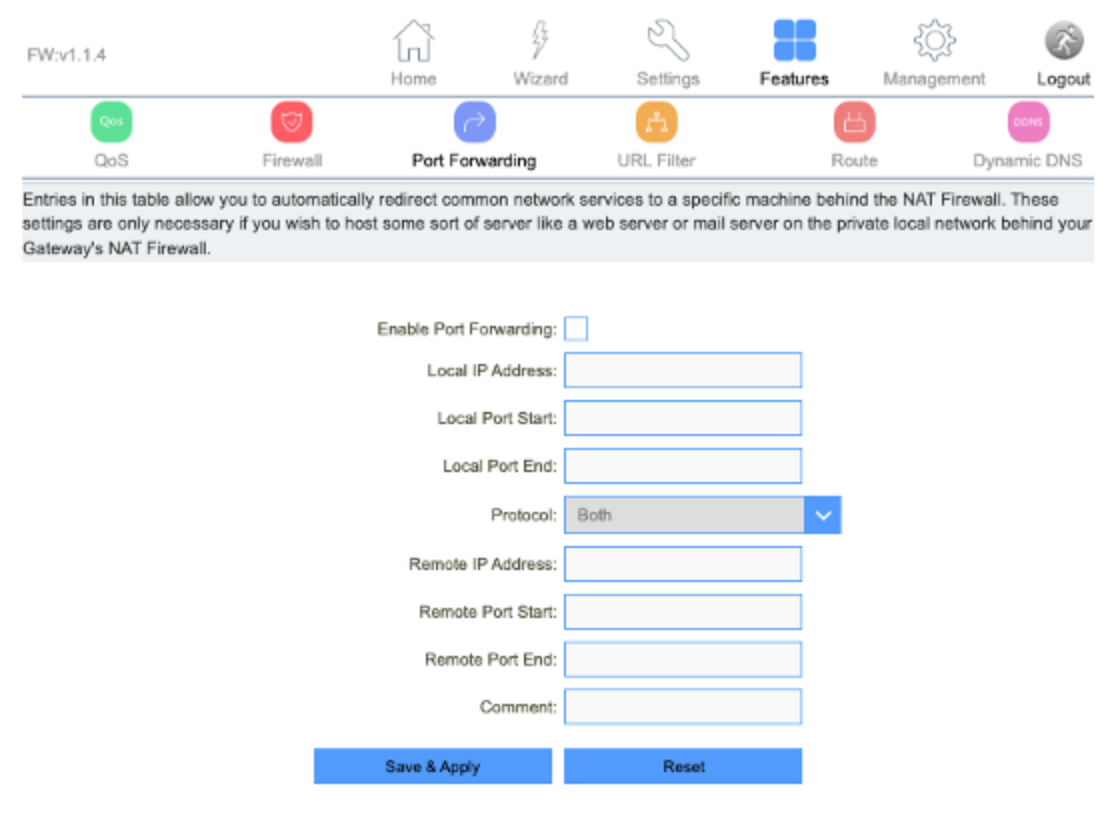

Port Forwarding (Not supported with vSIM）

The Port Forwarding page enables users to enable or disable port forwarding and set the port IP addresses that will be used to engage in allowing incoming traffic from outside the network to be sent to a local connected mobile device based on the requested port.

Item	Description
Enable Port Forwarding	Port Forwarding function.
Local IP Address	LAN IP address.
Local Port Start	LAN side start port.
Local Port End	LAN side end port.
Protocol	“TCP”, “UDP” or “Both”.
Remote IP Address	WAN IP address.
Remote Port Start	External start port.
Remote Port End	External end port.
Comment	Port number.

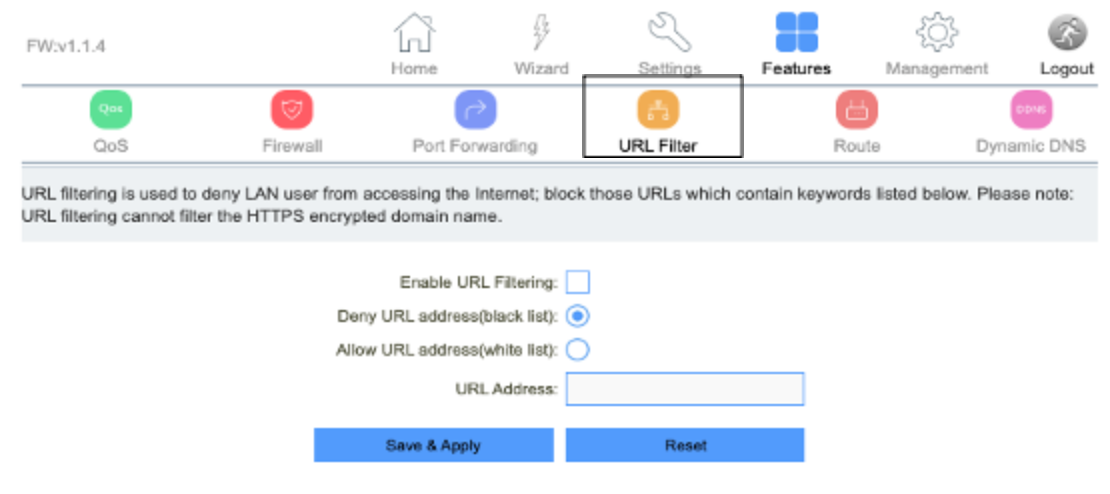

URL Filter

The URL Filter page is used to deny LAN users from accessing the internet. Users can block certain URLs that contain specific keywords.

Item	Description
Enable URL Filtering	Enable or disable URL Filtering function.
Deny URL address (black list)	Blocking access to the URL list.
Allow URL address (white list)	Allowing access to the URL list.
URL Address	Block or allow access URL.

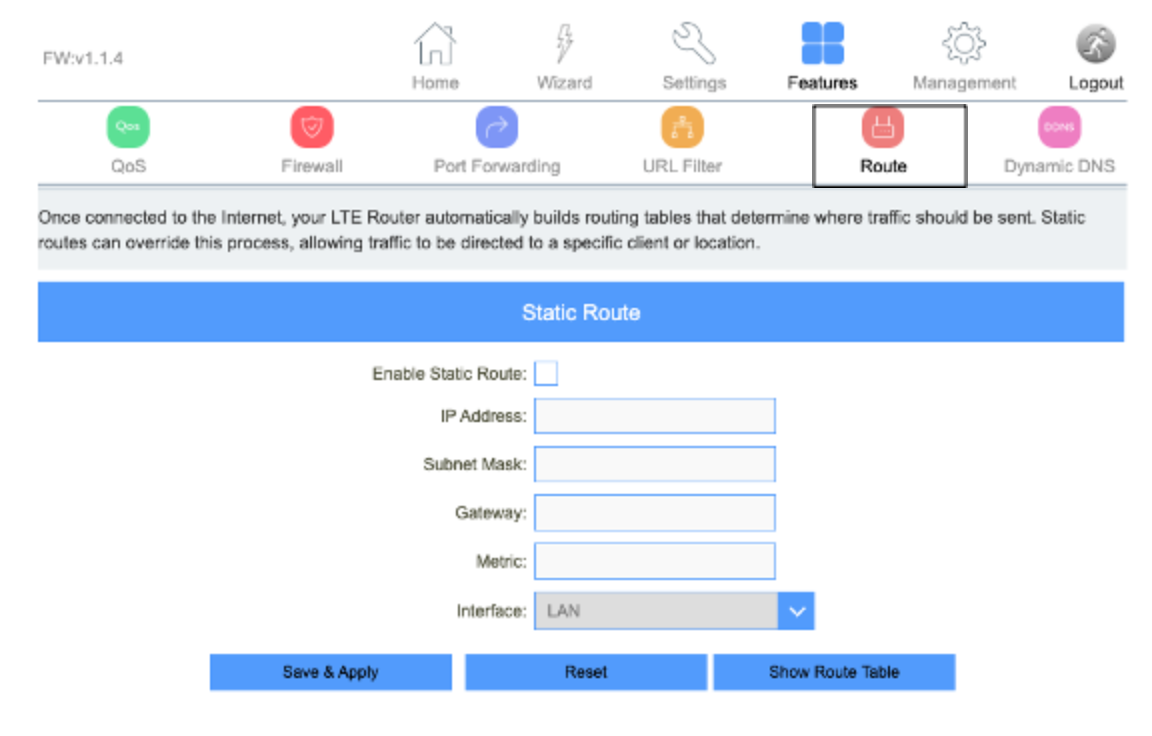

Route

The Static Route page enables user’s to enable or disable the Static route and input the items around it.

Item	Description
Enable Static Route	Enable or disable Static route.
IP Address	An IP address, or Internet Protocol address, is a series of numbers that identifies any device on a network.
Subnet Mask	A number that resembles an IP address. It reveals how many bits in the IP address are used for the network by masking the network portion of the IP address
Gateway	The IP address of another router your SOLIS HUB sends traffic too.
Metric	The routing metric.

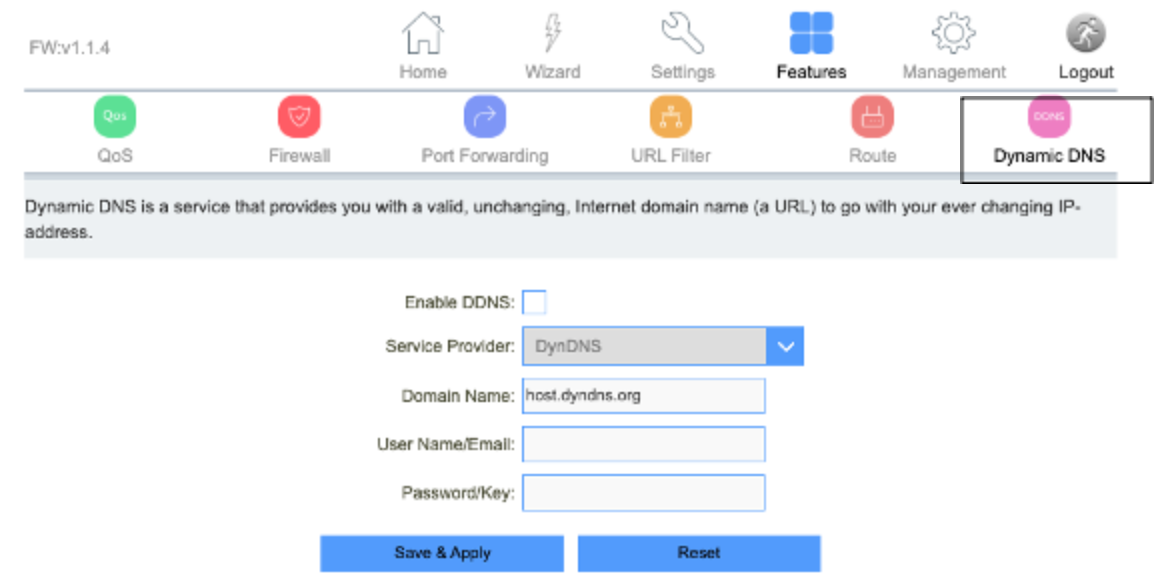

Dynamic DNS (Not supported with vSIM)

The Dynamic Domain Name Services (Dynamic DNS) page allows a dynamic public IP address to be associated with a static host name in any of the many domains and allows access to a specific host from various locations on the internet. DDNS requires that an account be set up with one of the supported DDNS service providers.

Item	Description
Server Provider	Select server from the drop-down list DynDNS TZO
Domain Name	The host name.
User Name/Email	The user name.
Password/Key	The password.
