Admin User Interface: Management

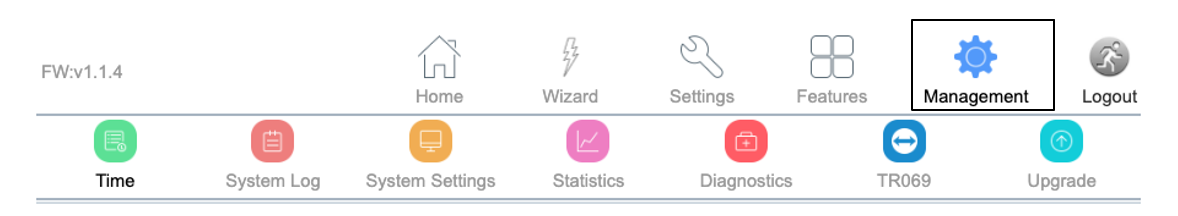

The Management section enables the user to perform key system updates such as setting the Solis Hub's IP address log-in username and password, enabling or disabling TR069, and upgrading the Solis Hub's firmware.

Time

The Time sub-section contains several pages related to time-related settings.

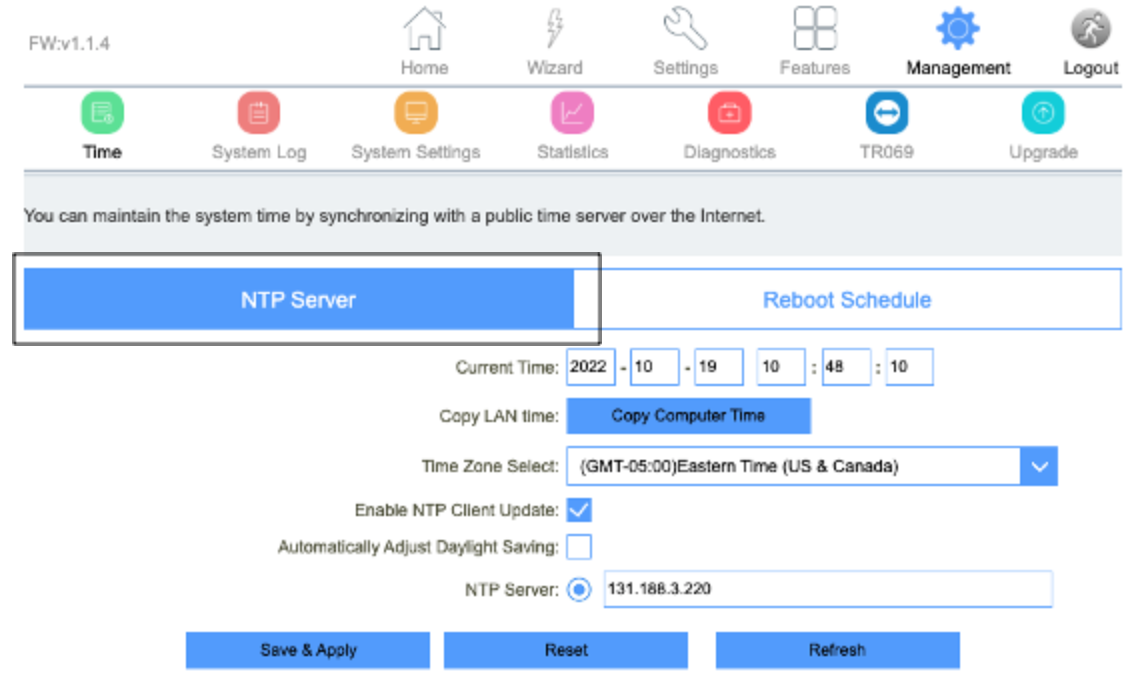

NTP Server

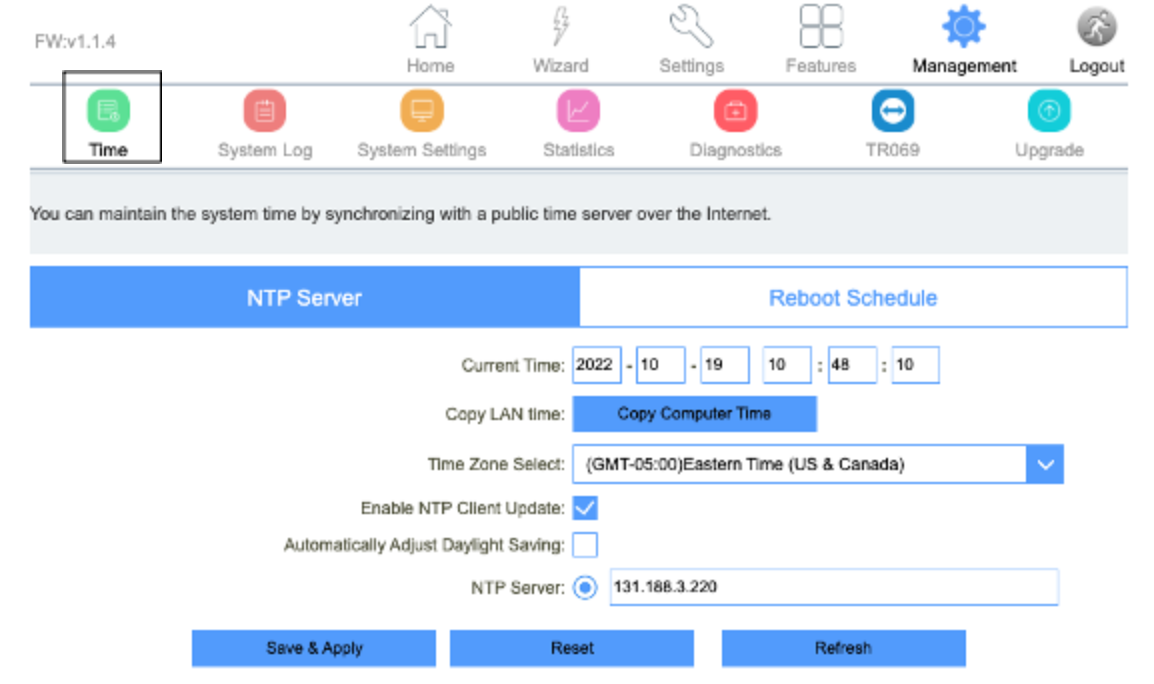

The NTP Server page enables user’s to set the current time and time zone onto their Solis Hub, in addition to setting NTP server.

Item	Description
Current Time	Select the time zone in your area.
Copy LAN time	Copy time from computer.
Time Zone Select	Select the time zone from the drop box.
Enable NTP client update	NTP client update.
Automatically Adjust Daylight Saving	Daylight savings function.
NTP Server	Select the well-known NTP Server.
Manual IP Setting	Enter the server manually.



Reboot Schedule

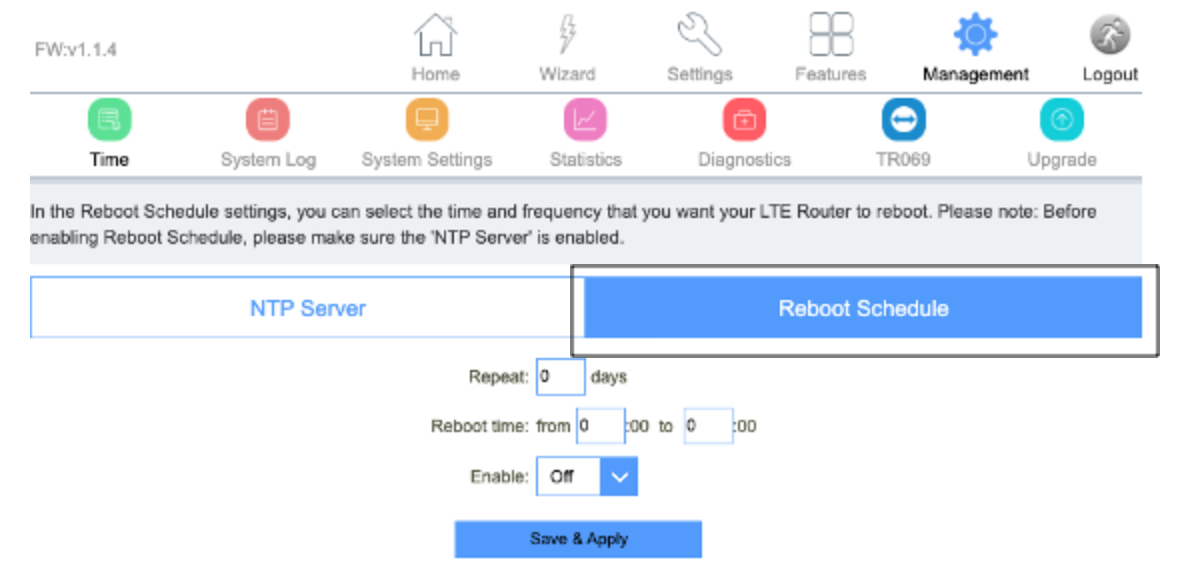

The Reboot Schedule page enables user’s to allow their Solis Hub to reboot automatically at a specified time.

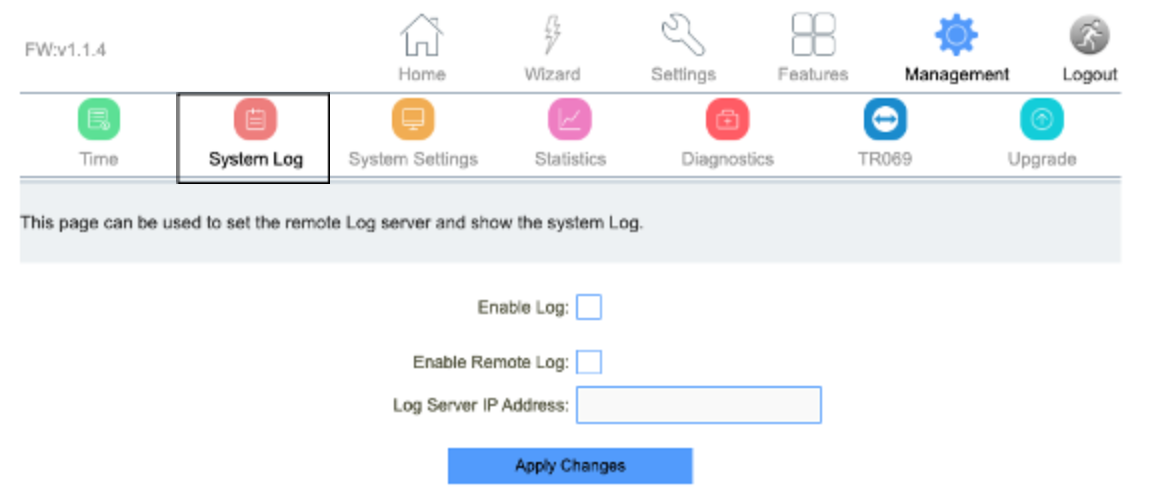

System Log

Item	Description
Enable Log	Log function.
System All	Print all log information.
Wireless	Print wireless log information.
DoS	Print DoS log information.
Enable Remote Log	“Logging to Syslog Server”.
Log Server IP Address	Enter the Syslog server IP address.



System Settings

The System Settings subsection contains several pages related to basic administration settings.

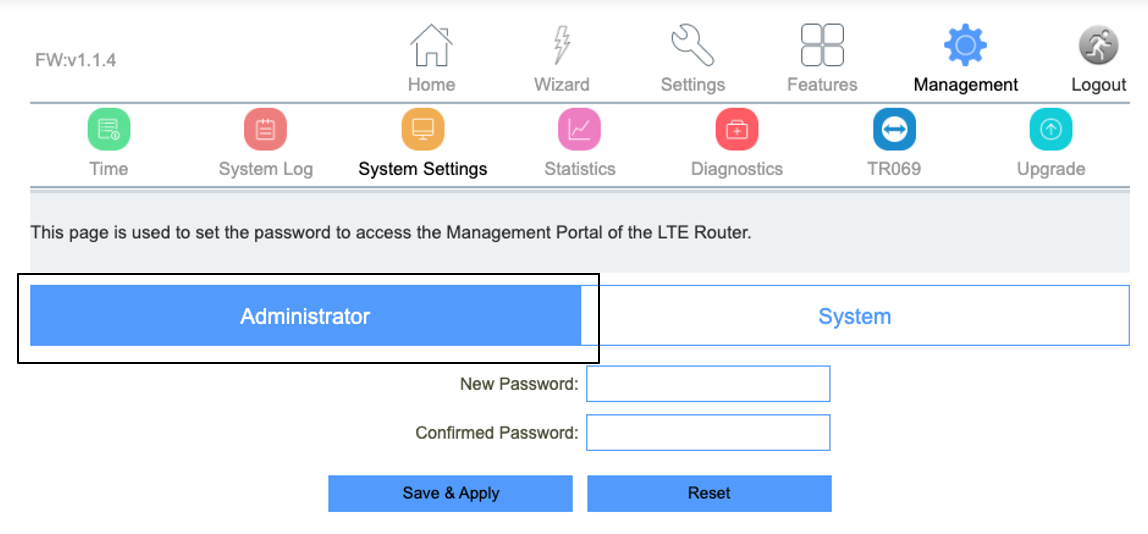

Administrator

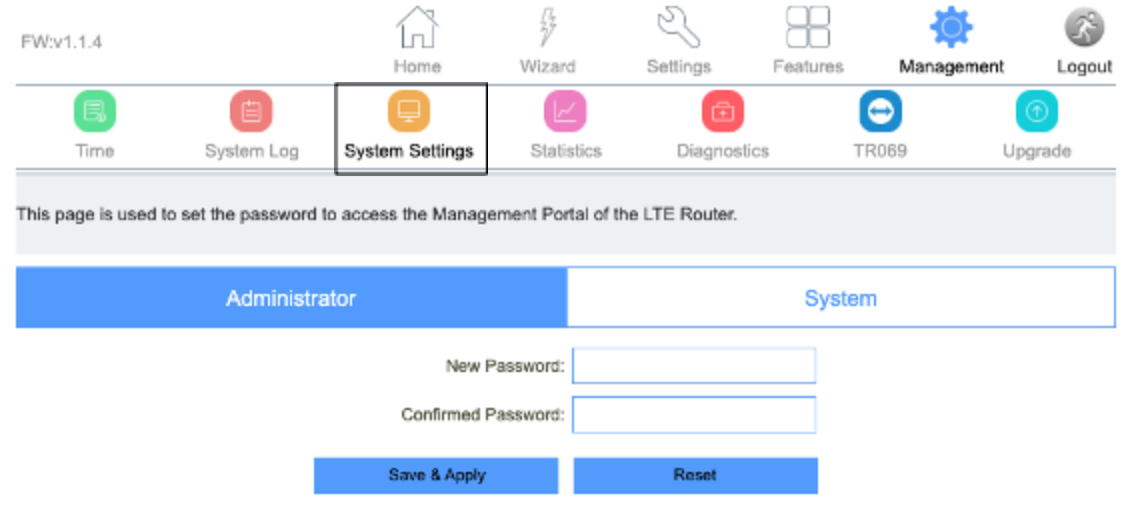

The Administrator page allows users to set the Solis Hub's IP address log-in username and password.

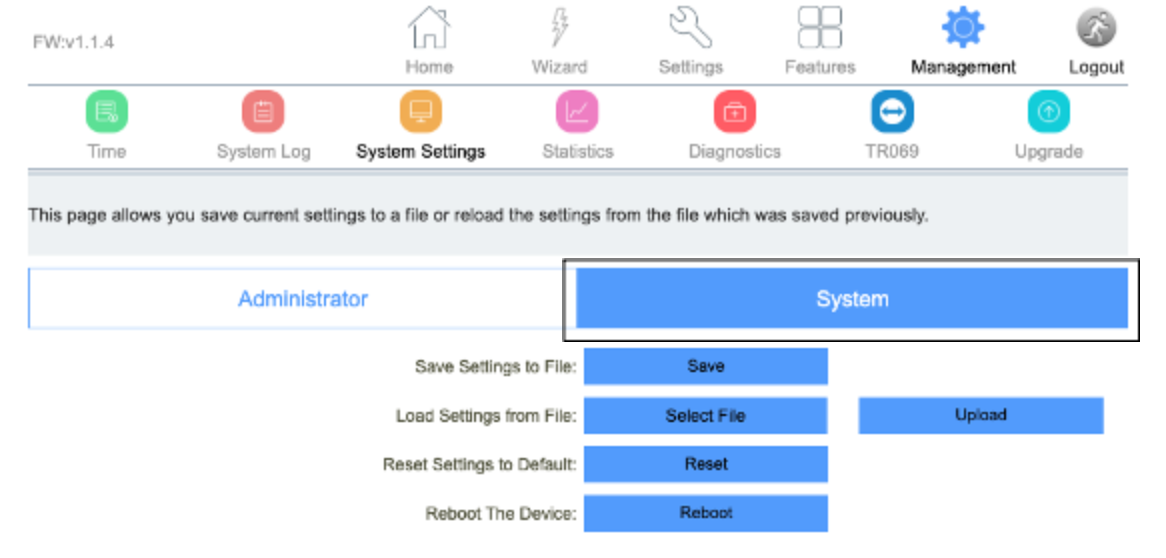

System

Item	Description
Save settings to file	Save the settings to the local PC.
Load settings from File	Load the settings from the local PC.
Reset Settings to Default	Restore the device to factory default.
Reboot the device	Press the button to reboot the device.



The System page allows user’s to back up, restore, and erase the Solis Hub's current settings. Once you provision your router to your liking, it is recommended to back up the settings so that they are saved as a file on your computer. In the future, you can then restore the Solis Hub's settings from this file.



Statistics

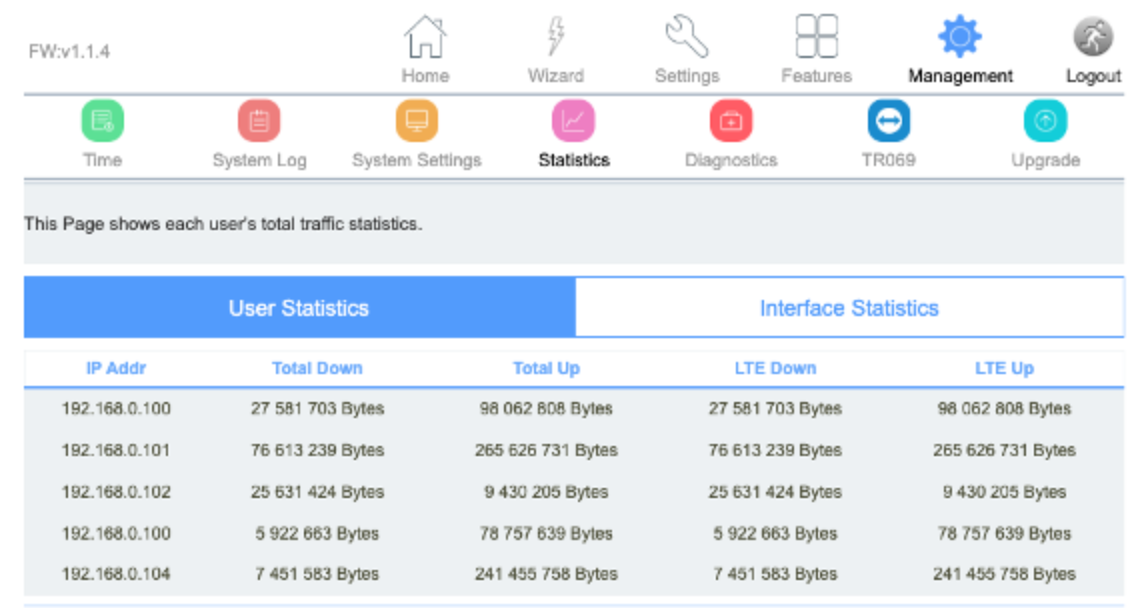

The Statistics subsection contains several pages related to basic administration settings.

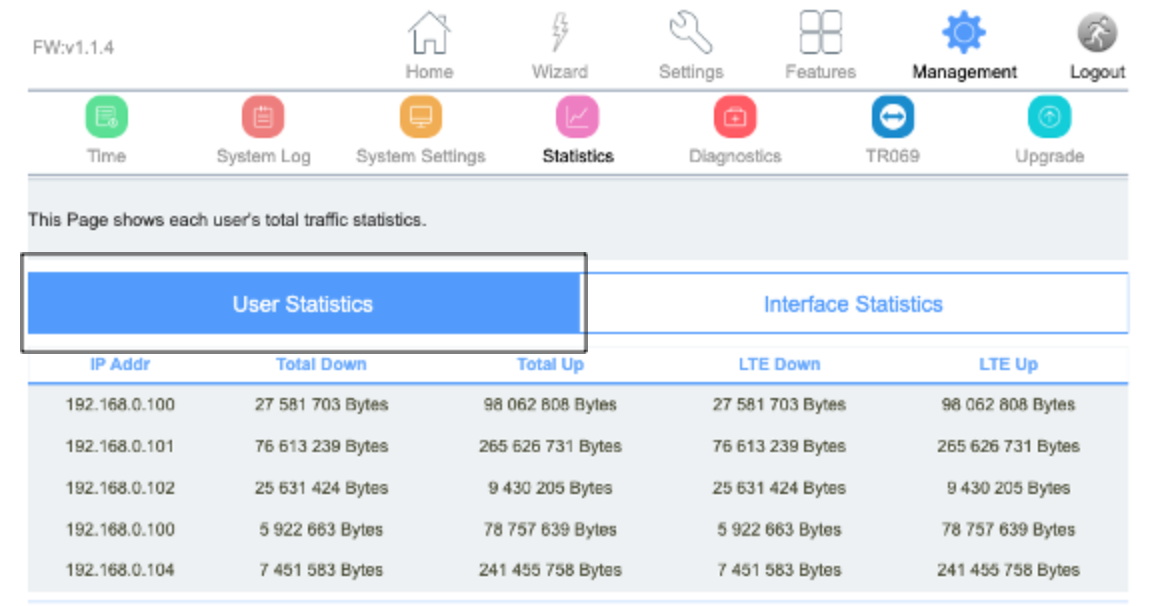

User Statistics

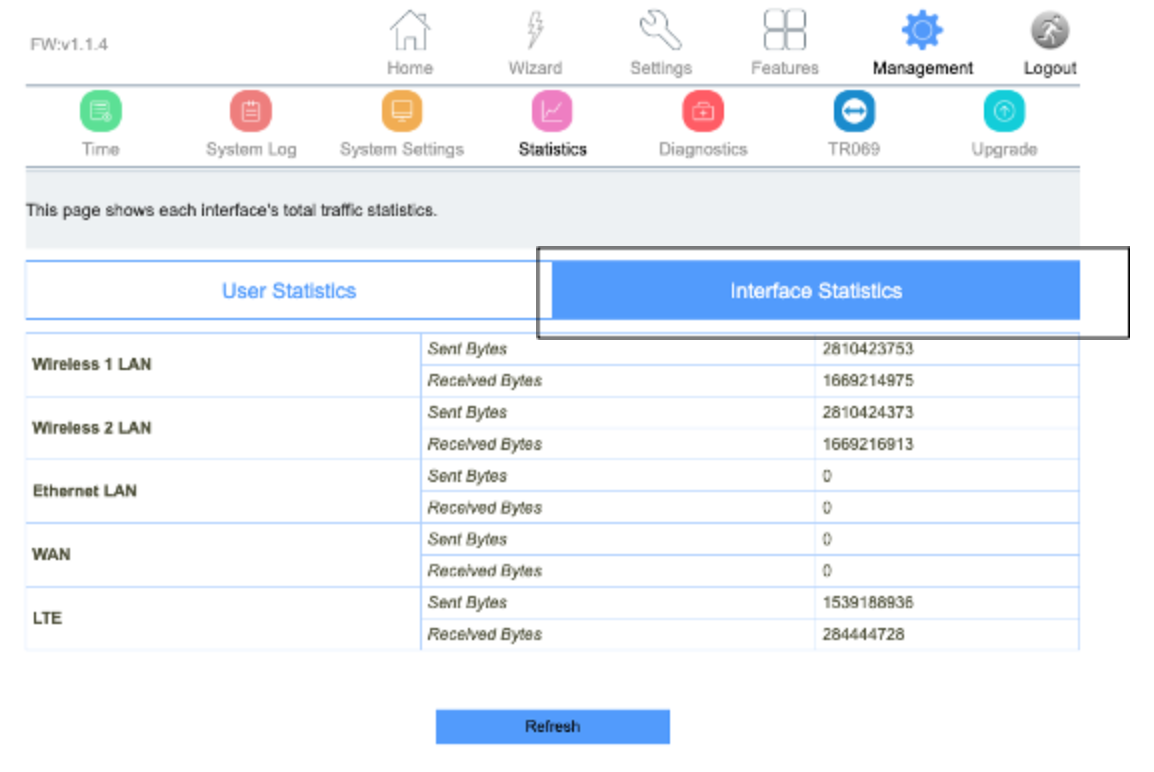

Interface Statistics

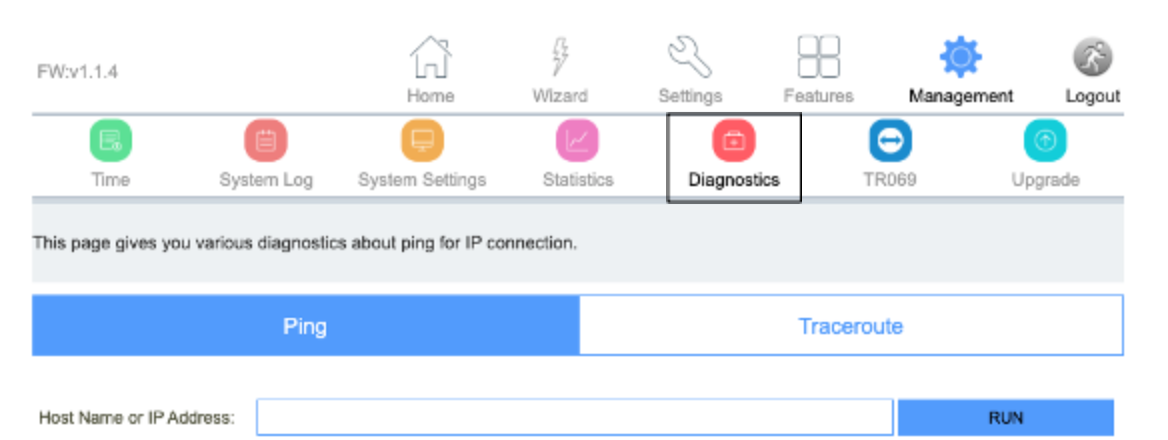

Diagnostics

The Diagnostics page provides various diagnostics surrounding ping and traceroute for IP connection.

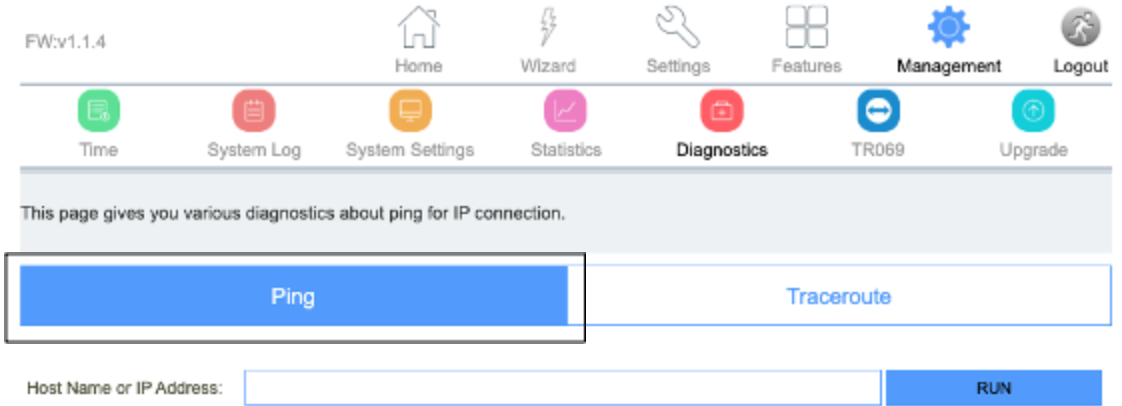

Ping

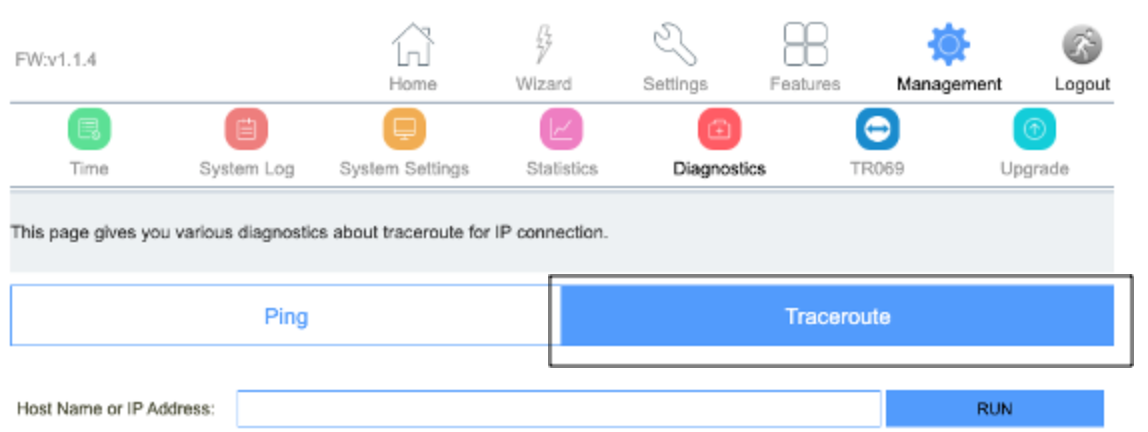

Traceroute

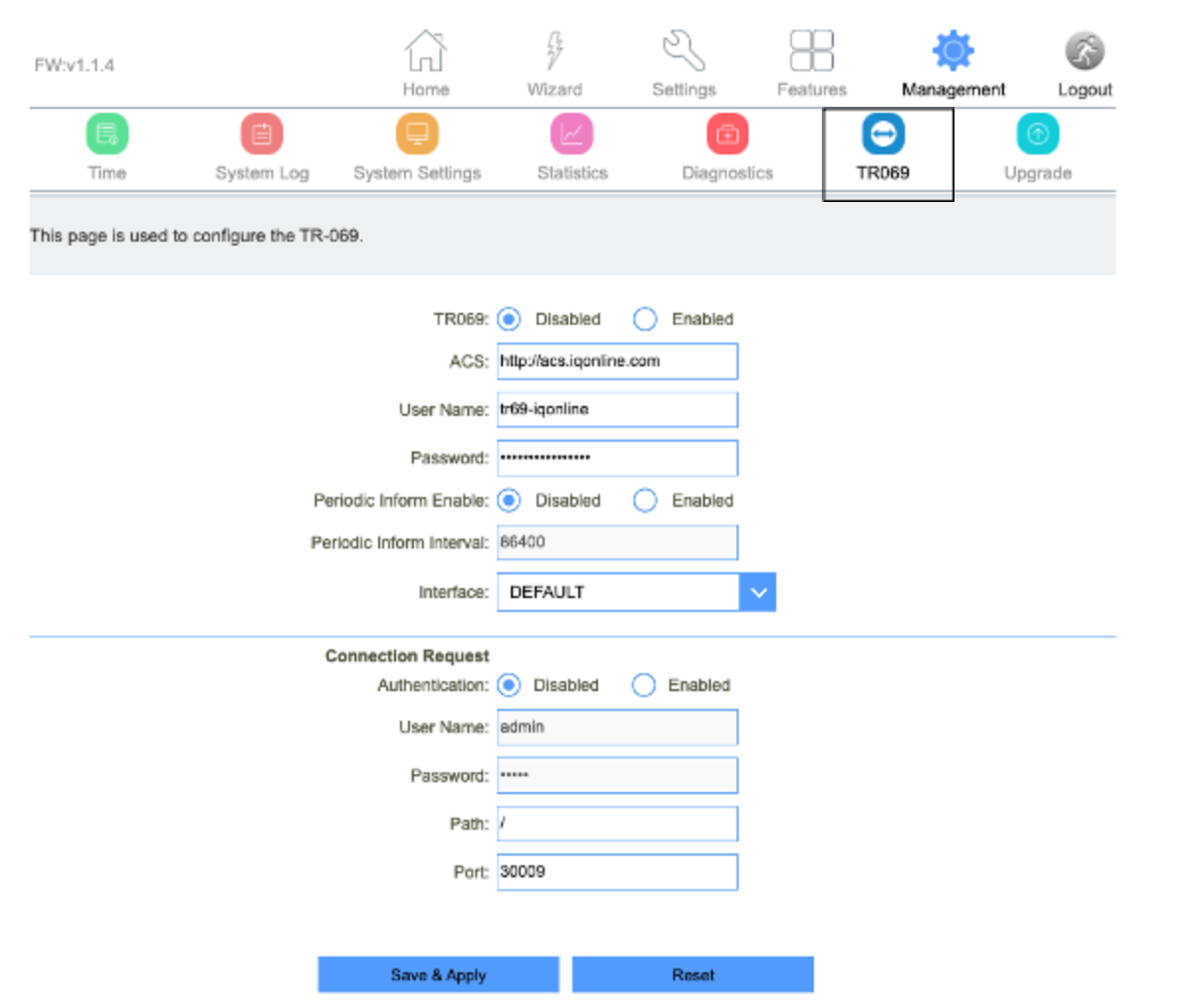

TR069 (Not supported with vSIM)

The TR069 page is used to configure the TR069 functionalities in addition to setting the ACS’s parameters.

Item	Description
TR069	Technical Report 069
ACS	ACS server domain or IP Address.
User Name	Username for connection to ACS.
Password	Password for connection to ACS.
Periodic Inform Enable	Periodic inform.
Periodic Inform Interval	Periodic inform interval.
Connection Request User Name	User Name used form ACS connection to TR069.
Connection Request Password	Password used form ACS connection to TR069.
Path	Connection request path.
Port	Connection port.

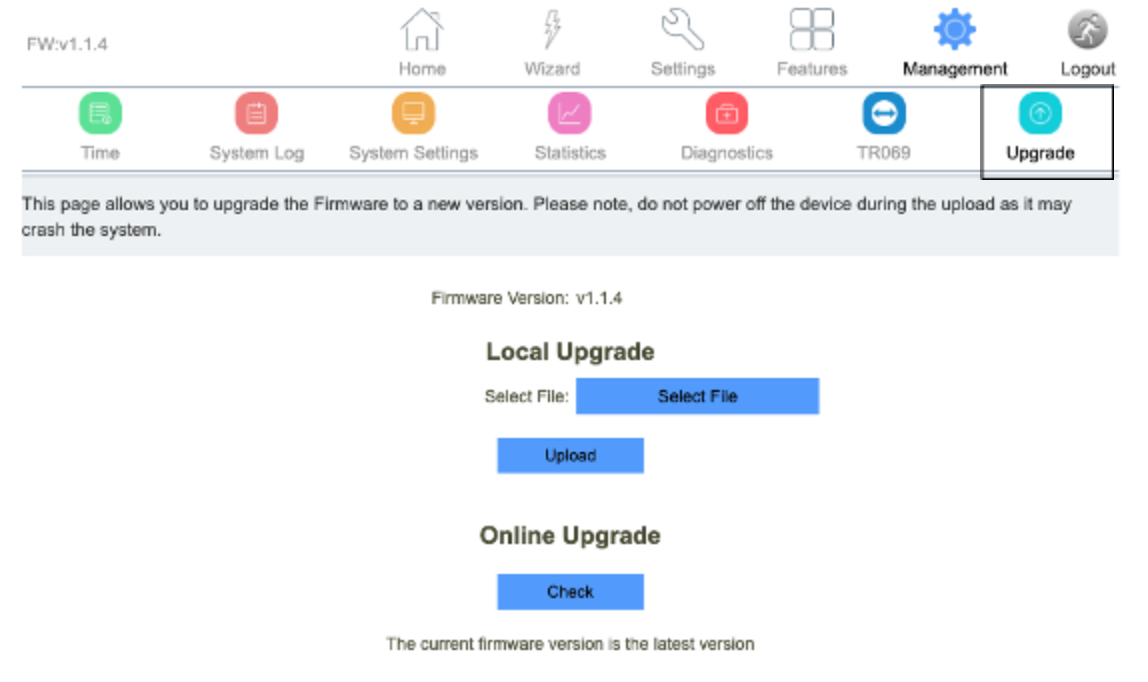

Upgrade

From time to time, new versions may be released of the Solis Hub's Firmware. Firmware updates contain improvements and fix existing problems.

The Local Upgrade page enables users to upgrade the Solis Hub's software.

The Online Upgrade section of the page enables users to upgrade the mobile module firmware to a new version.

Do not power off the device during the upload as it may crash the system.
