Indicator Lights Guide

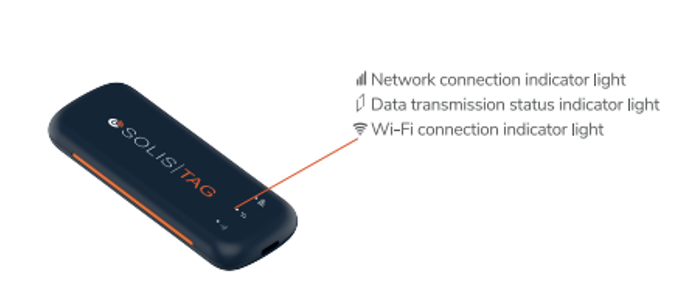

LED Indicators on Device
Network connection indicator light
Data transmission status indicator light
Wi-Fi connection indicator light
LED Status Chart
| LED | Behavior | Definition |
|---|---|---|
| Cellular | Blinking (2.5Hz) | Device is connecting to the vSIM network. One ON+OFF = one blink at 2.5Hz. |
| Cellular | Solid White | Device is connected to the Internet. |
| Cellular | Unlit | No cellular connection. |
| Cellular | Solid Red | Connection error. |
| Data | Solid White | Data transfer is available, but no data is currently being transferred. |
| Data | Unlit | Data is not available or is turned off. |
| Data | Blinking White (2.5Hz) | Data is currently being transferred. One ON+OFF = one blink at 2.5Hz. |
| Wi-Fi | Solid White | Wi-Fi is ready. |
| Wi-Fi | Unlit | Wi-Fi is not available yet. |
| Power On | All LEDs briefly illuminate white then turn off | Device startup sequence. |
| Firmware Update | Cellular, Data, and Wi-Fi LEDs blink red continuously (2.5Hz) | Firmware update in progress. One ON+OFF = one blink at 2.5Hz. |
