Device Diagram and LED Indicators

User Interaction	Device LED Lighting	Graphic

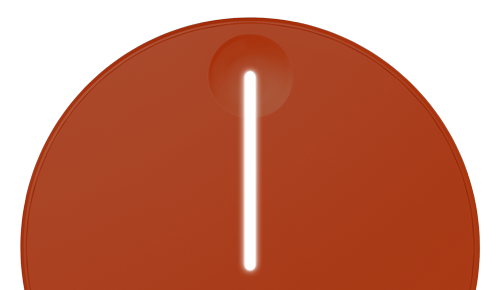

Power On	LED bar lights up

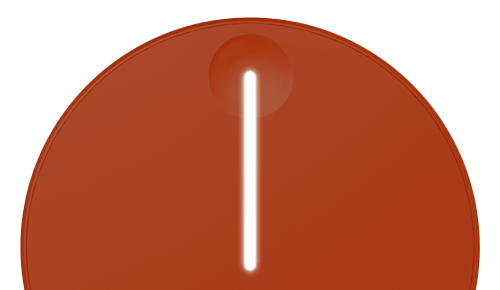

Power Off	LED bar turns off
Boot Up	LED bar animates back and forth until boot up is complete
Device has no service and there are Daypasses in account balance	Flashing consistently until new Daypass is activated

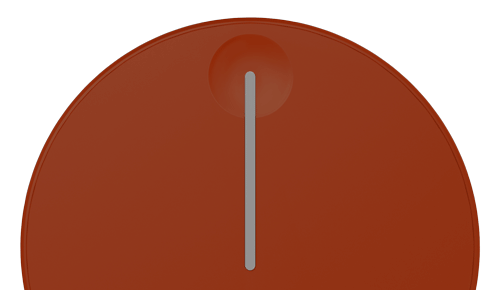

Device has no service and there are NO Daypassess in account balance	LED bar is all white with 1 red light at the end

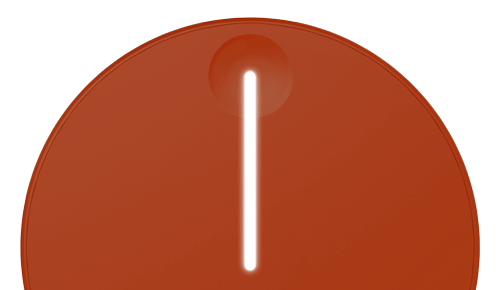

Activate Daypass	LED bar blinks white once

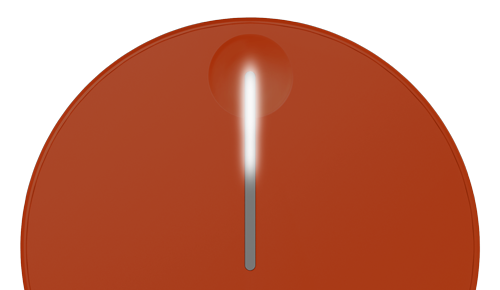

Battery Level	Length of LED bar represents the battery level

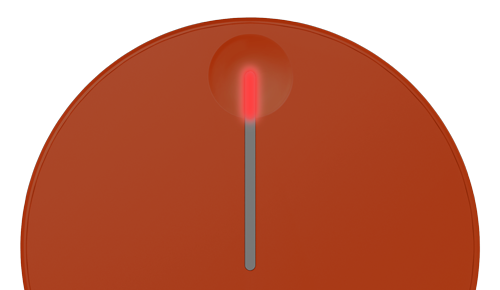

Low Battery (<20%)	LED bar end is red

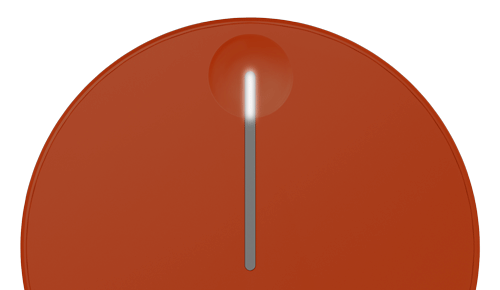

Battery Charging In	LED bar animates in the direction of charging
Battery Charging Out	LED bar animates in the direction of charging
Microphone On/Off (Only for Solis X)	LED bar blinks white once
Flashlight On/Off (Only for Solis X)	LED bar blinks white once
Change Speaker Volume (Only for Solis X)	LED bar blinks white once
Take a photo (Only for Solis X)	LED bar blinks white once
Record a video (Only for Solis X)	LED bar blinks white once

User Interaction	Device LED Light	Graphic

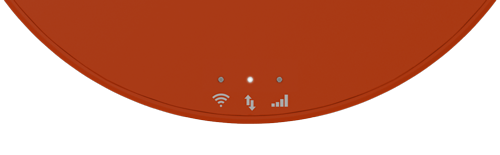

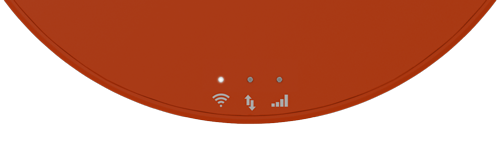

Data transfer is available	White solid light

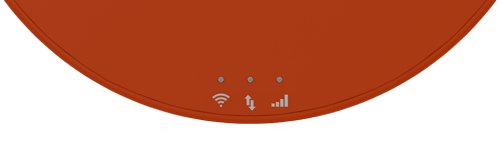

Data is currently being transferred	White blinking light
Data is not available or turned off	Lights off

User Interaction	Device LED Light	Graphic

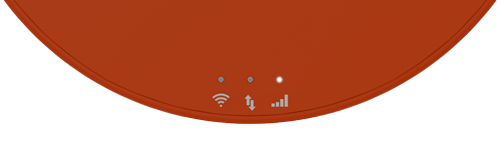

Connected to a cellular tower	White solid light
Attempting to connect to a cellular tower	White blinking light

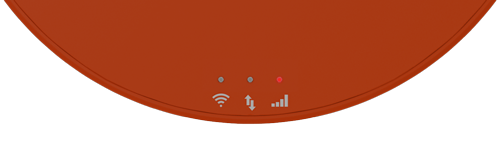

Failed to connect to a cellular tower in 6 minutes	Red solid light
Device off	Lights off
