What's in the Box

• Solis Hub Router x1
• Power Adapter x1
• Ethernet Cable x1
• 2.4 GHz Wi-Fi Antennas x2
• 5.0 GHz Wi-Fi Antennas x2
• LTE Antennas x2

Step 1: Attach Antennas

• Connect the included antennas: 2.4 GHz, 5 GHz, and LTE.
• Ensure antennas are properly connected to designated sockets, securely fastened, and positioned upright.

Step 2: Position the Router

• Place your Solis Hub near a window (If 4G signal reception is weak, try another window.)
• Front of the device should face the window (toward the 4G signal).
• Back of the device should face into your home.

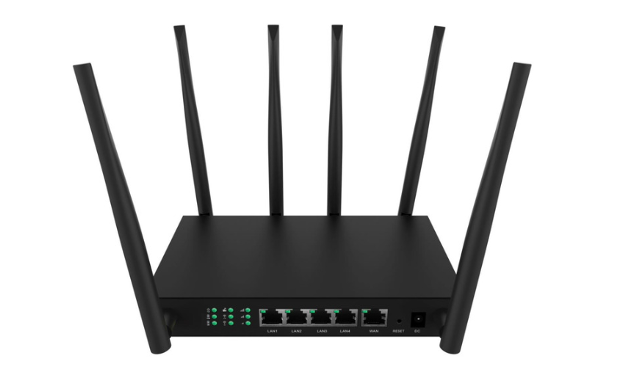

Front Side

This side should face the 4G signal (window)

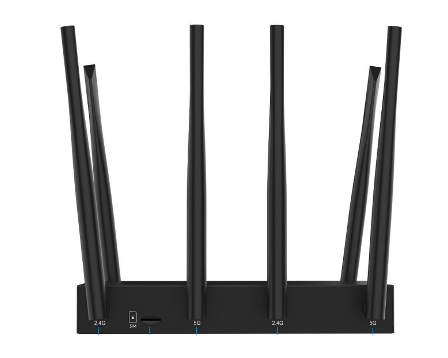

Back Side

This side should face inside the home

Step 3: Power On

• Plug the power adapter into the router and a wall outlet[BX2] . The router will turn on automatically.

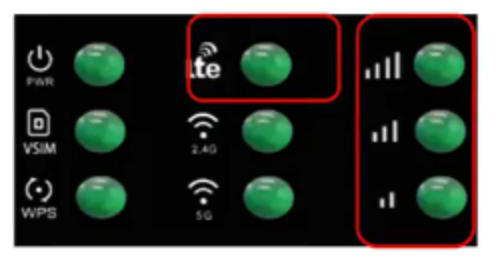

• When the LTE and Signal Strength LED indicators are solid, the router is ready for use.

Step 4: Register on the Solis App

• Download the Solis App on your mobile device from the Google Play or Apple App Store.

• Open the Solis App , tap ‘Sign Up’, and choose ‘Other Devices’ to continue with registration.
• To complete the registration, scan the QR code on top of the Solis Hub using your phone's camera. Alternatively, you can select 'Enter Manually' to add your device. The SIMO Serial Number and IMEI are available on the homepage of the router’s admin portal (198.168.0.1).
• Ensure you’re connected to the router’s network before accessing the admin portal.

Step 5: Buy Data or Redeem Code

• To buy data plans, go to ‘Shop’ in the Solis App.
• To redeem a prepaid code, go to ‘Shop’, select ‘Apply Code’, and enter your code to complete the redemption.

Step 6: Connect to Wi-Fi

• Locate the SSID and Wi-Fi Key (password) on the bottom label of your Solis Hub.[BX3]  Both 2.4G and 5G SSID are available for connection.
• On your phone or computer, go to Wi-Fi settings and select the router's SSID.
• Enter the Wi-Fi Key to connect.

You're All Set!

• Your Solis Hub is now ready to use.
• For advanced configuration or troubleshooting, refer to the full User Guide.[JR4]

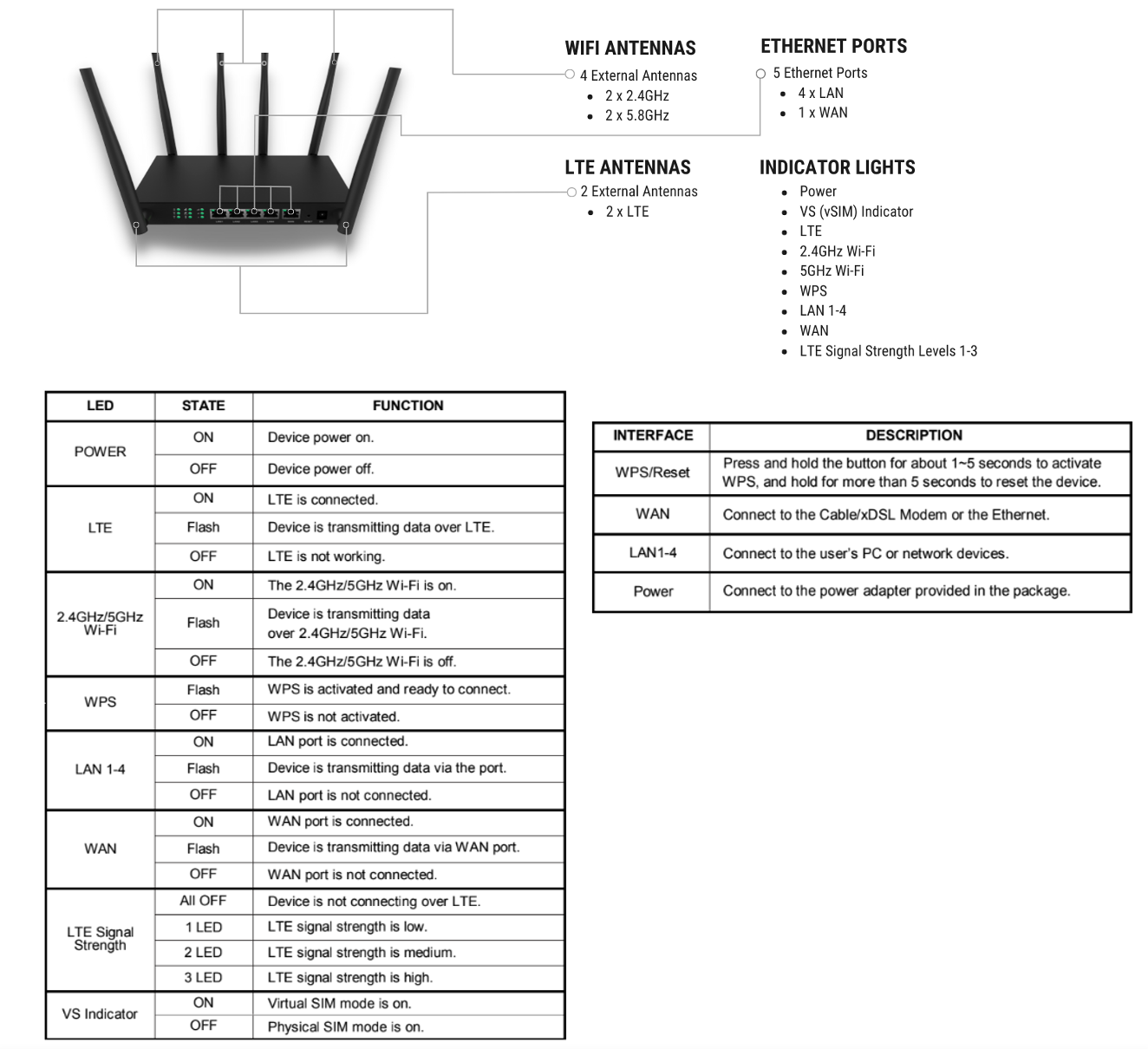

Solis Hub Diagram and Light Status Indicators

For advanced setup and support, refer to the articles below:

• To activate WPS connection, click here.
• Admin Account, SSID configuration, LAN/WAN setup, click here.
• Understanding the admin portal webpage, click here.
• To review additional admin settings, click here.
• To configure QoS, firewalls, port forwarding, URL filtering, and Dynamic DNS, click here.
• To set IP address login username and password, enabling/disabling TR069, and firmware management, click here.

Note: Manufacturer does not supply replacement parts, repair services, or maintenance/repair information for this product.
