Solis Hub Setup Guide

Follow this guide to set up your Solis Hub for the first time. You'll learn how to power on your device, link it to your SIMO account, buy a data plan, and connect to its Wi-Fi network so you can start using your data plan.

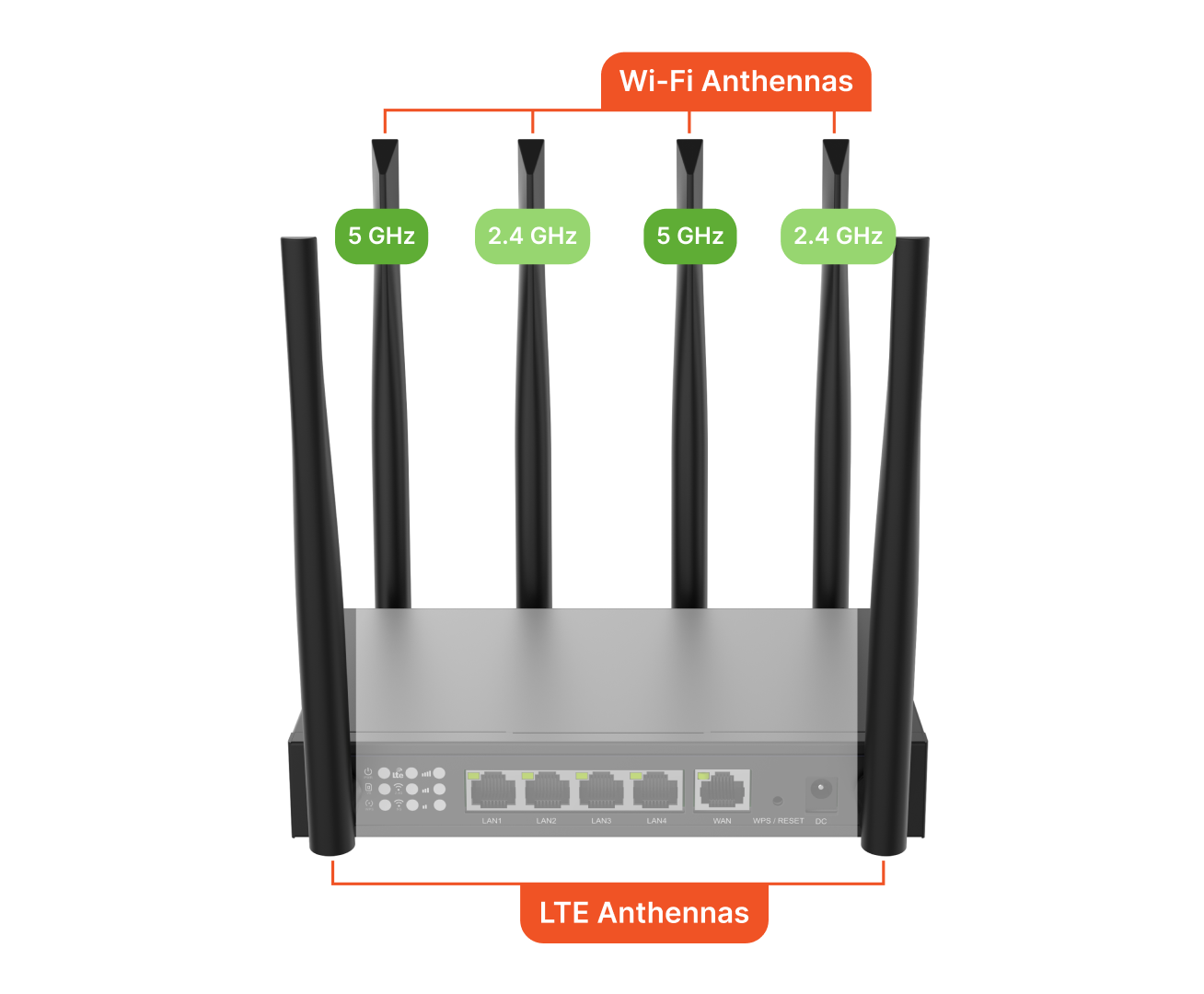

1. Attach Antennas

• Connect the included antennas: 2.4 GHz, 5 GHz, and LTE.
• Ensure antennas are properly connected to designated sockets, securely fastened, and positioned upright.

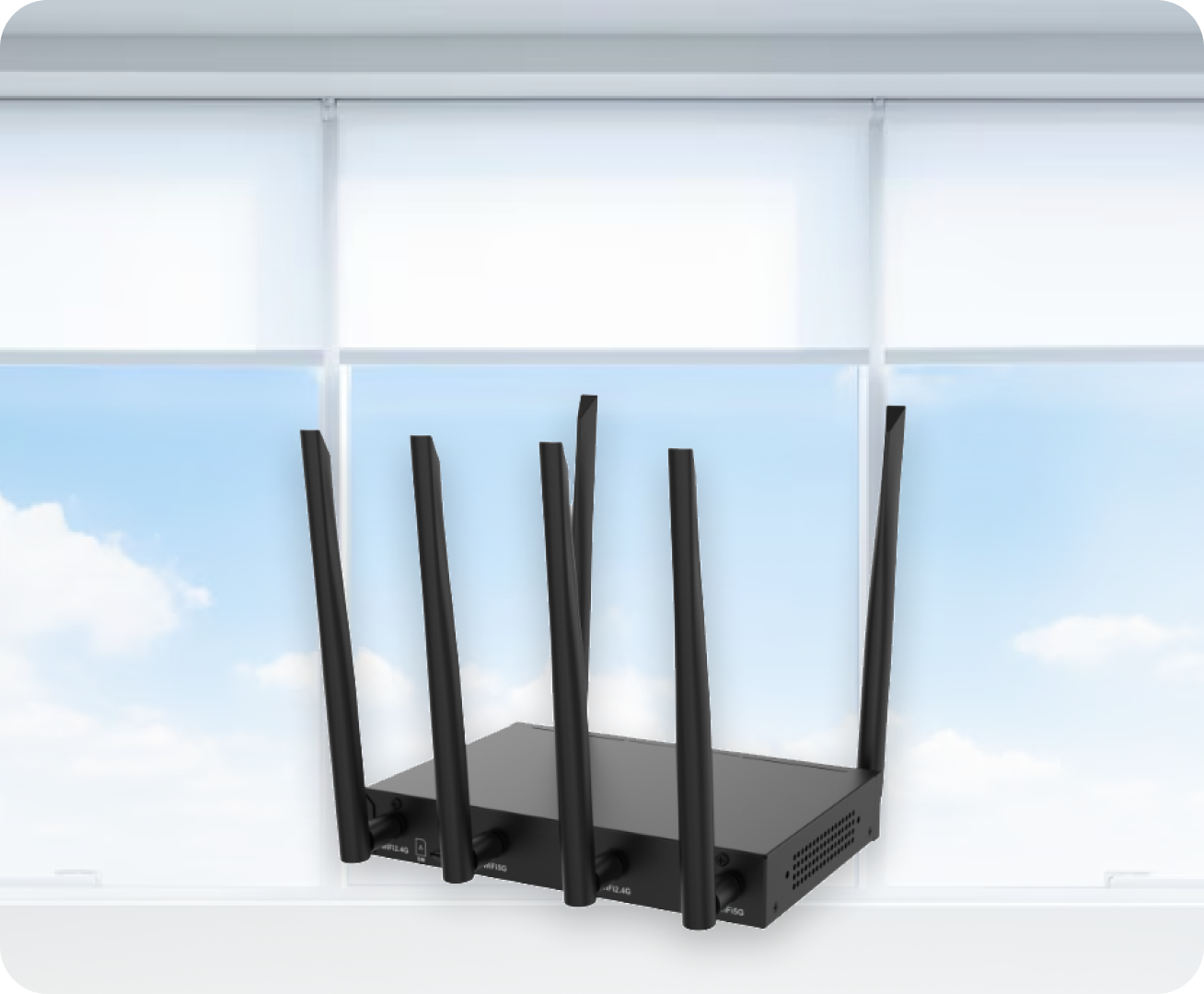

2. Position the Router

• Place your Solis Hub near a window (If 4G signal reception is weak, try another window.)
• Front of the device should face the window (toward the 4G signal).
• Back of the device should face into your home.

3. Power On

• Plug the power adapter into the router and a wall outlet. The router will turn on automatically.
• When the LTE and Signal Strength LED indicators are solid, the router is ready for use.

4. Download the App

Scan the QR code below with your phone's camera to download the SIMO app.

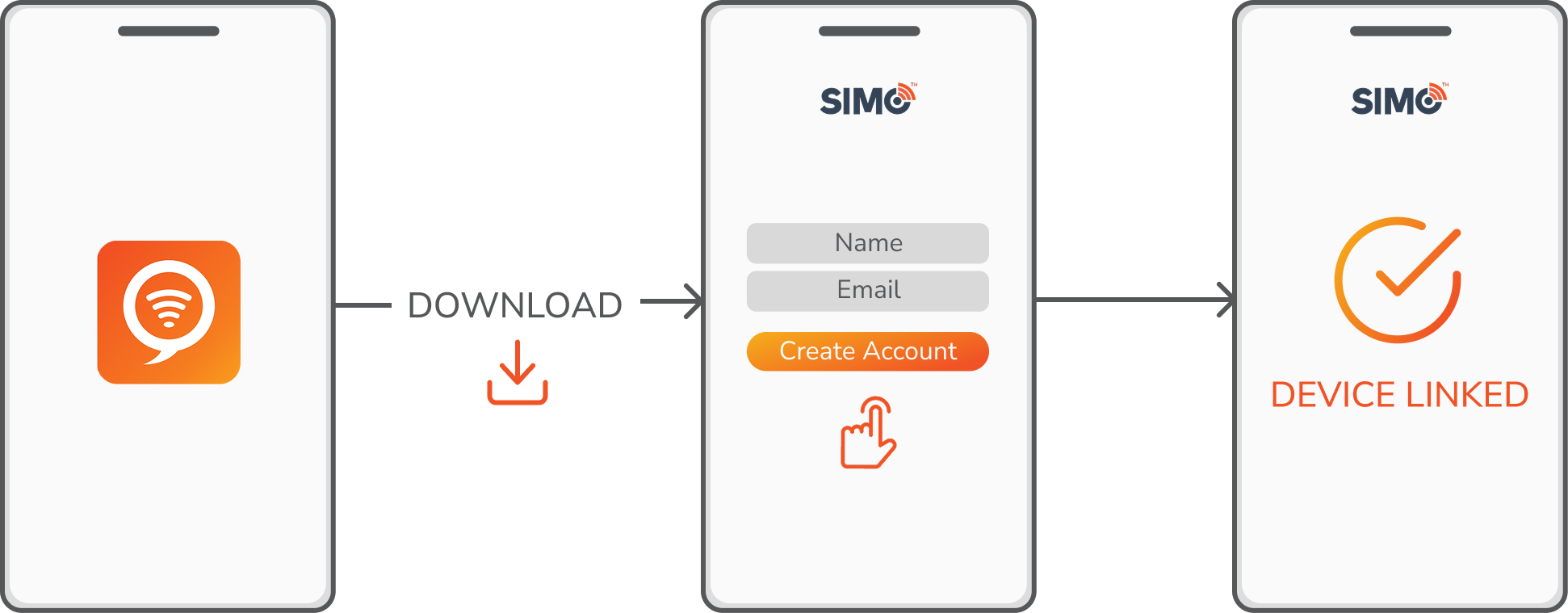

5. Sign Up and Add Hotspot

Follow the app's instructions to create a SIMO account and add the device to your account.

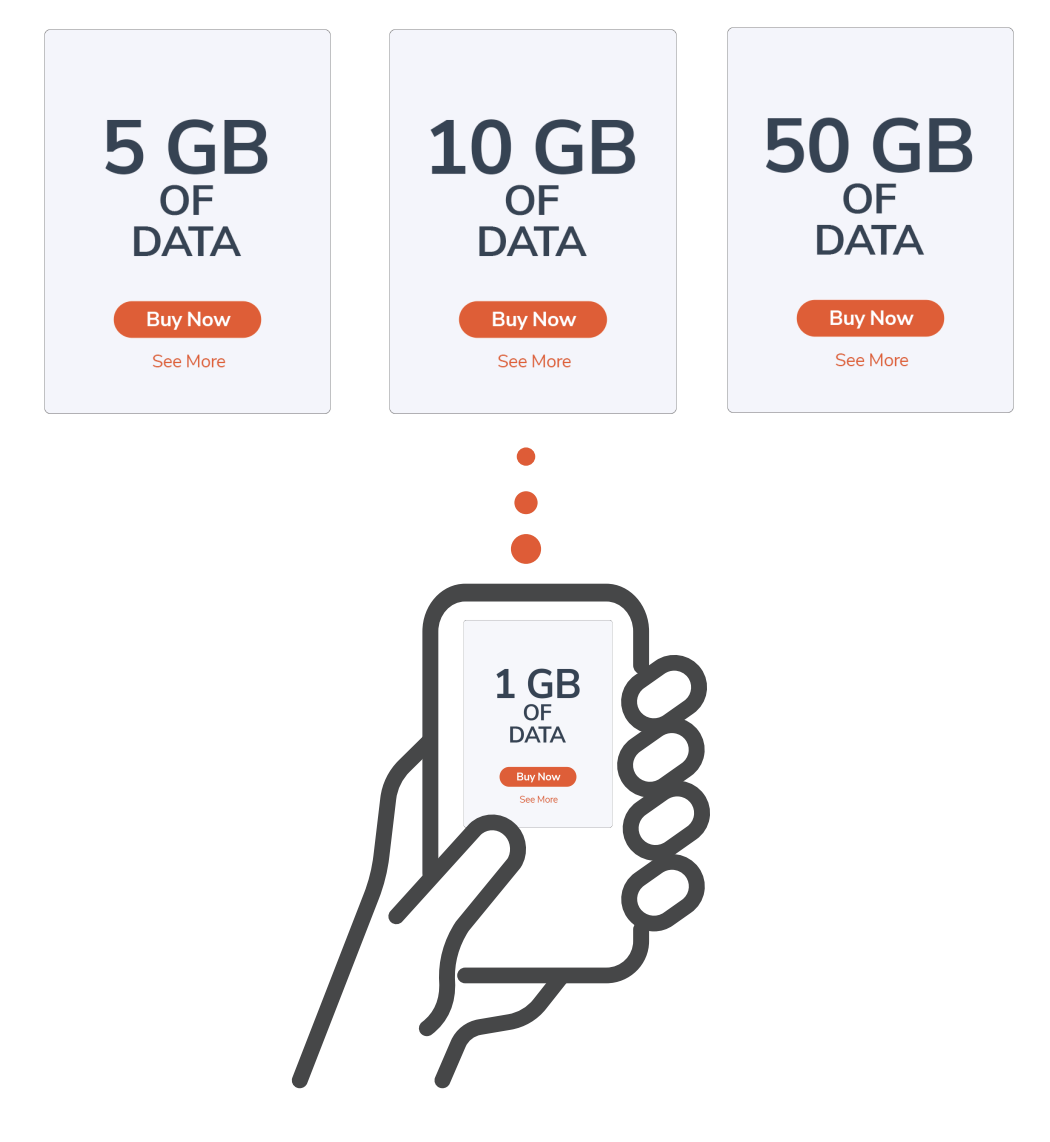

6. Buy or Activate WiFi

Visit the Shop page on the web portal / App to buy a data plan. If you have a prepaid code, enter the code before checkout to redeem the prepaid service.

7. Connect to Wi-Fi

• Locate the SSID and Wi-Fi Key (password) on the bottom label of your Solis Hub.[BX3]  Both 2.4G and 5G SSID are available for connection.
• On your phone or computer, go to Wi-Fi settings and select the router's SSID.
• Enter the Wi-Fi Key to connect.

You're All Set!

Your Solis Hub is now ready to use. For advanced setup and support, refer to the articles below:

• To activate WPS connection, click here.
• Admin Account, SSID configuration, LAN/WAN setup, click here.
• Understanding the admin portal webpage, click here.
• To review additional admin settings, click here.
• To configure QoS, firewalls, port forwarding, URL filtering, and Dynamic DNS, click here.
• To set IP address login username and password, enabling/disabling TR069, and firmware management, click here.

Note: Manufacturer does not supply replacement parts, repair services, or maintenance/repair information for this product.
